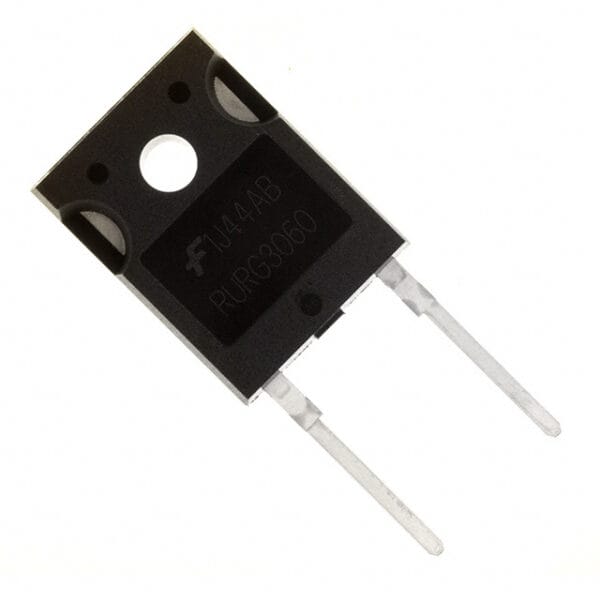

RURG3060 – 600V 30A Ultrafast Diode

Technical Specifications:

• Type: Ultrafast Rectifier Diode
• Repetitive Peak Reverse Voltage (VRRM): 600V
• Average Forward Current (IF(AV)): 30A
• Forward Voltage (VF): 1.5V (typical) at 30A
• Reverse Recovery Time (trr): 60ns (typical)
• Peak Forward Surge Current (IFSM): 325A
• Operating Temperature Range: -55°C to 175°C
• Package Type: TO-247-2, 2-pin, through-hole

Product Features:

• High-Speed Switching: Ultrafast recovery time of 60ns for efficient performance in switching circuits.
• High Voltage & Current: Rated at 600V with a 30A continuous forward current capacity.
• Low Forward Voltage Drop: Typical 1.5V drop, reducing power loss in high-current applications.
• Robust Surge Handling: Supports a peak forward surge current of 325A for reliability under stress.
• Soft Recovery: Minimizes ringing and EMI, enhancing circuit stability.
• Compact Design: Housed in a TO-247-2 package for through-hole mounting and effective heat dissipation.
• RoHS Compliant: Environmentally friendly and suitable for modern manufacturing standards.
