DWIN PRODUCTS CATALOG
Product Classification
M4A3-6432-10VI48
The M4A3-6432-10VI48 is a low-power, high-performance CPLD (Complex Programmable Logic Device) from Lattice’s ispMACH 4A family. Featuring 64 macrocells, 32 I/Os, and a fast 10ns propagation delay, this device is ideal for control logic, interfacing, and glue logic in embedded systems.
M4A3-6432-10VI48
SII9437CNUC
The SII9437CNUC is a high-performance HDMI 1.4 receiver with integrated MHL support, designed for digital video applications. It supports full HD video, multi-channel audio, and advanced content protection, making it ideal for consumer electronics and embedded multimedia systems.
SII9437CNUC
GAL16V8D-15LPN
The GAL16V8D-15LPN is a high-performance PLD (Programmable Logic Device) featuring 16 inputs/outputs and a 15ns propagation delay. Housed in a DIP-20 package, it’s ideal for low-power, high-speed logic replacement and custom digital logic design.
GAL16V8D-15LPN
KXTJ3-1057
The KXTJ3-1057 is an ultra-low power, high-performance 3-axis MEMS accelerometer with digital I²C/SPI interfaces. Designed for space-constrained and battery-powered applications, it delivers accurate motion detection in a tiny LGA package.
KXTJ3-1057
SPH0644LM4H-1
The SPH0644LM4H-1 is a high-performance digital MEMS microphone with a bottom port and I²S interface. Designed for space-constrained and low-power audio applications, it offers superior signal quality and ease of digital integration.
SPH0644LM4H-1
LFXP2-8E-5FTN256C
The LFXP2-8E-5FTN256C is a non-volatile FPGA from the Lattice XP2 family, offering 8K logic elements, embedded flash memory, and low power operation. Designed for system integration and instant-on performance in space-constrained applications.
LFXP2-8E-5FTN256C

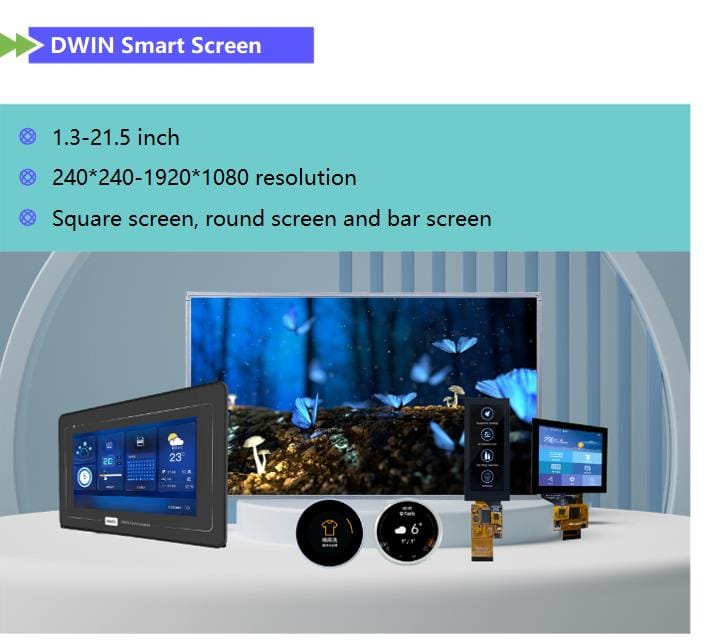

DWIN Smart Screen—Distinctive Product Line DWIN Technology
DWIN T5L-series smart screen, running DGUS software, a mature product line for diverse use.
DWIN Smart Screen—Popular & Best Selling

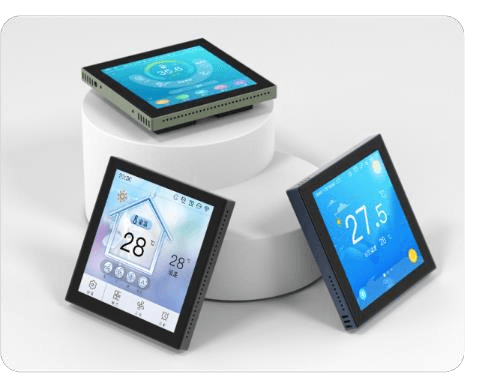

86 Box
- The built-in algorithm of the chip reduces temperature measurement errors by screen heating
- Support full-screen touch, providing stylish appearance and smooth user experience.
- Support OTA software and UI interface online upgrade, integration of multiple languages
- Expand Zigbee, WiFi and RS485 to realize centralized management and control.
- Expand infrared sensor, proximity sensor, off-line voice module and RF module and other component modules.

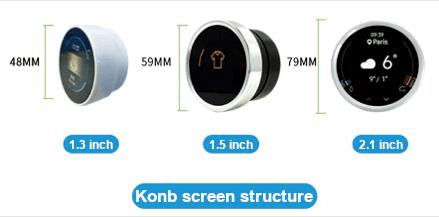

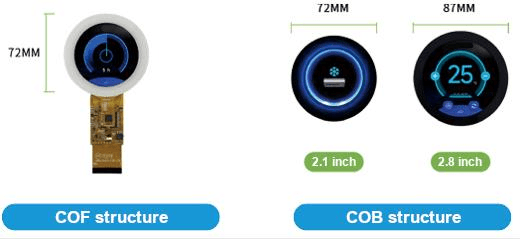

Circular Smart Screen
- Support the standard DGUS development mode. Users only need to design the UI picture material as a circle.
- IPS wide viewing angle screen with high-resolution, crystal-clear display
- GFF capacitive touch screen.
- Exquisite design in a compact size.
Embedded System Screen DWIN Technology

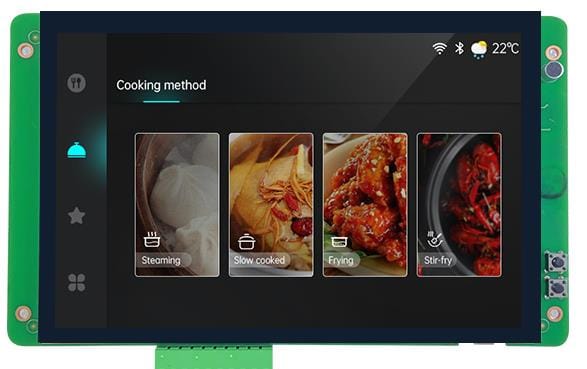

Android
- Running Android system, RK3566 chip.
- Support JAVA rapid APP development.
- 64-bit system, compatible with common software on the Android Appstore.
- Lower price and higher performance.

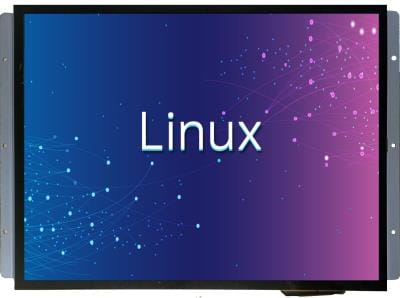

Linux
- Multiple CPU options: quad core, dual core, and single core ARM Cortex-A7 processors.
- Available from 1GHz to1.2GHz.
- QT development and Debian desktop version available.

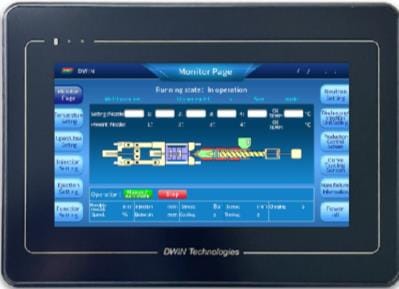

HMI
- Self-developed HMI software.
- Easy to use, integrated with PLC communication, macro-instruction, recipe, database, event login and other functions.
Our Products
| Chip | Picture | Technology | Packing | MCU | Application | Max. Resolution | Contact |
|---|---|---|---|---|---|---|---|
| T5L0 |  | HLMC 40nm | LQFP 128 | Dual 8051 | Small to medium size display | 1024*768 |  |
| T5L1 |  | HLMC 55nm | LQFP 128 | Dual 8051 | Small to medium size display | 1366*768 | |
| T5L2 |  | SMIC 40nm | LQFP 128 | Dual 8051 | Large size display | 1920*1080 | |
| T5L3 |  | SMIC 40nm | LQFP 176 | Dual 8051 | Multimedia display | 1920*1080 | |
| T5G |  | TSMC 40nm | BGA 400 | Dual 8051 +Dual Hifi3 DSP+DDR3 | Streaming media decoding and encoding large size multimedia display | 4096*2560 | |
| T5F0 |  | HLMC 40nm | QFN 88 | Dual 8051 | IoT | 480*480 | |
| T5F2 |  | HLMC 40nm | LQFP 128 | Dual 8051 | 1920*1080 | | |
| TPS04 |  | HLMC 40nm | QFN 88 | 8051 | High reliability CTP controlling | | |
| TPS05 |  | HLMC 55nm | QFN 88 | ARM Cortex M3 8-ADC 16bit 100MSPS 2-DAC 16bit 100MSPS USB, WLAN interface | High reliability test instrument | |
Product Catalog
| Size | Resolution (H*V) | Model | LCD Type | Note | Contact |
|---|---|---|---|---|---|
| 1.3 | 240*240 | DMG24240F013_03WN | IPS | T5L0-Q88, circular screen | |
| DMG24240C013_13WN | IPS | T5L0, circular knob screen, encoder shell | |||
| DMG24240C013_03W | IPS | Circular screen | |||
| 1.54 | 240*240 | DMG24240C015_03W | IPS | T5L0,16M (flash can't be extended） | |
| DMG24240C015_13WN | IPS | T5L0, circular knob screen, encoder shell | |||
| 1.6 | 400*400 | DMG40400F016_06W | IPS | Circular screen=black, WTCZ01=white, WTCZ02=Integrated black Debugging board: HDL662K has buzzer, speaker interface, and USB interface | |
| DMG40400C016_03W | IPS | IPS circular screen, T5L0-Q88 | |||
| DMG40400C016_13WNZ154 | IPS | T5L0-Q88, circular knob screen, encoder shell | |||
| 2 | 240*320 | DMG32240C020_03W | IPS | T5L0 | |
| 2.1 | 480*480 | DMG48480F021_01W | IPS | Circular screen, WTC=black, WTCZ01=white, WTCZ02=Integrated black Debugging board: HDL662S has buzzer, speaker interface, SD card interface and USB interface | |
| DMG48480C021_02W | IPS | IPS circular screen, T5L1 | |||
| DMG48480C021_03W | IPS | IPS circular screen, T5L1 | |||
| DMG48480C021_13WTC | IPS | T5L0-Q88, circular knob screen, encoder shell | |||
| 2.4 | 240*320 | DMG32240C024_03W | TN | T5L0 | |
| 2.8 | 240*320 | DMG32240F028_01W | TN | LCM: LN32240F028SO3004, TPS04 capacitive touch IC | |
| DMG32240F028_02W | TN | LCM: LN32240F028SO3504/ LN32240F028SO3599 | |||
| DMG32240C028_03W | TN | ||||
| 480*480 | DMG48480C028_03W | IPS | IPS circular screen, T5L1 | ||
| 3 | 360*640 | DMG64360T030_01W | IPS | T5L0, farad capacitor, horizontal screen at factor | |
| DMG64360K030_01W | IPS | T5L1, farad capacitor, horizontal screen at factor | |||
| 3.5 | 320*240 | DMG32240F035_01W | IPS | | |
| DMG32240C035_03W | TN | T5L1 | |||
| DMG32240S035_03W | TN | T5L1, farad capacitor, anti UV, AG | |||
| 320*480 | DMG48320F035_01WTC | IPS | T5L0, WTC=black, WTCZ01=white, WTCZ02=Integrated black | | |
| DMG48320F035_01WTR | TN | T5L0 | |||
| DMG48320F035_04WN | IPS | T5F0 |
