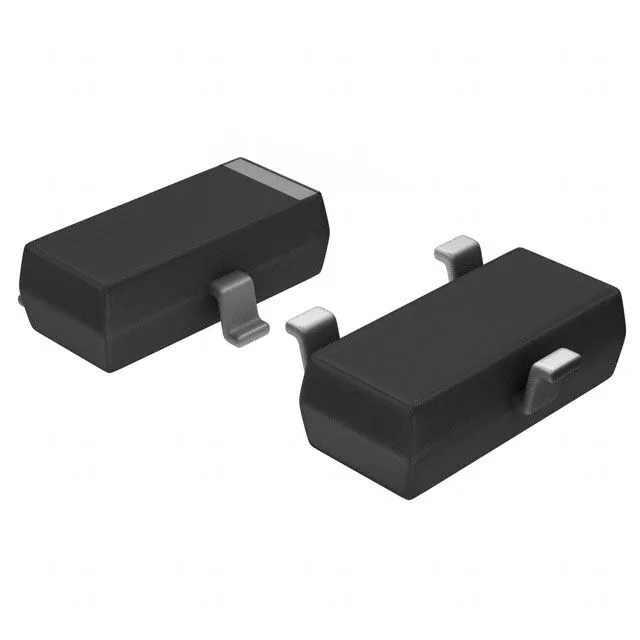

AO3400A – 30V N-Channel MOSFET

The AO3400A is a 30V N-Channel MOSFET from Alpha & Omega Semiconductor, ideal for efficient switching in various applications such as load switches, DC-DC converters, and power management in portable devices.

Product Brochure

Description

Technical Specifications:

  • Drain-Source Voltage (VDS): 30V
  • Gate-Source Voltage (VGS): ±12V
  • Continuous Drain Current (ID): 5.7A at 25°C
  • Power Dissipation (PD): 1.4W at 25°C
  • Operating Temperature Range: -55°C to 150°C

Product Features:

  • Low On-Resistance: Offers an RDS(ON) of 26.5mΩ at VGS = 10V, minimizing power loss.
  • High Current Capability: Supports continuous drain current up to 5.7A at 25°C, suitable for high-load applications.
  • Fast Switching: Features a low gate charge of 6 nC at VGS = 4.5V, enabling rapid switching operations.
  • Compact Package: Comes in a space-saving SOT-23 package, ideal for compact designs.
