MC68711E20CFNE4 – 8-bit Microcontroller with On-Chip EEPROM

Description

Technical Specifications:

• Core Architecture: 8-bit HC11
• Clock Speed: Up to 20MHz
• Program Memory: 20KB ROM
• RAM: 512 Bytes
• EEPROM: 512 Bytes
• ADC: 8-bit, 8 channels
• Communication Interfaces: SPI, SCI (UART), I2C
• Timers: Input capture/output compare
• Operating Voltage: 4.5V to 5.5V
• Operating Temperature: -40°C to +85°C

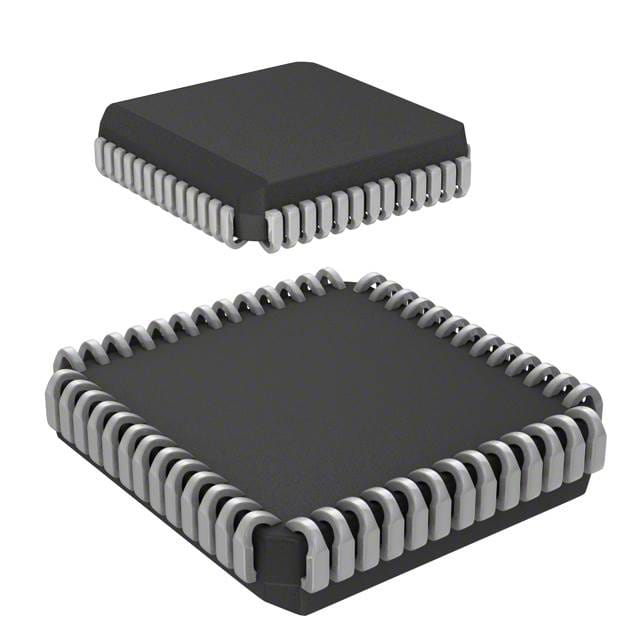

• Package Type: PLCC-52

Product Features:

• High-Performance Core: Based on the HC11 architecture, offering efficient 8-bit processing.
• Integrated Memory: 20KB ROM, 512B RAM, and 512B EEPROM for data storage.
• Analog Functionality: 8-channel 8-bit ADC for precise analog signal measurement.
• Multiple Interfaces: Supports SPI, SCI (UART), and I2C for seamless communication.
• Flexible I/O: Multiple GPIO pins for interfacing with external components.
• Timer System: Programmable timer with input capture/output compare for real-time control.
• Wide Operating Voltage: Supports 4.5V to 5.5V operation for industrial compatibility.
• Durable Package: Comes in a PLCC-52 package for robust integration into embedded systems.
