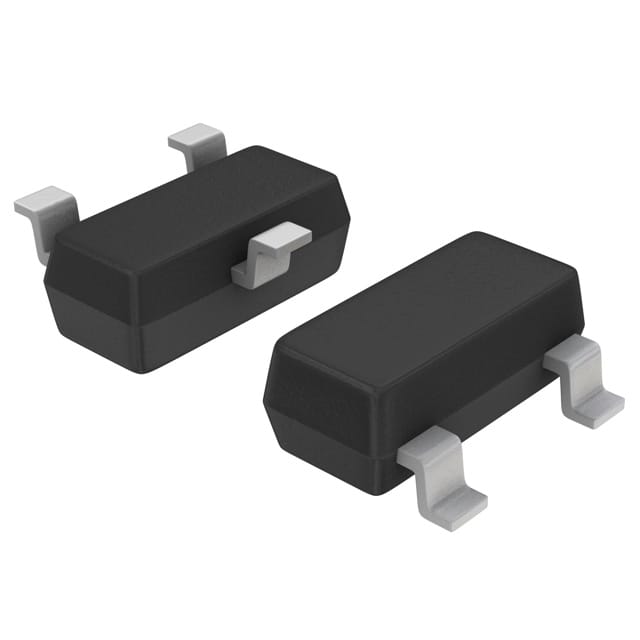

IRLML5203TRPBF – 30V Logic-Level P-Channel MOSFET in SOT-23

Description

Technical specifications:

• Drain-to-source voltage (V_DSS): -30V
• Continuous drain current (I_D): -2.5A @ V_GS = -10V
• R_DS(on): 0.065Ω max @ V_GS = -4.5V
• Gate threshold voltage (V_GS(th)): -1.0V to -2.0V
• Package: SOT-23
• Total gate charge (Q_g): 7.8nC typical
• Operating temperature: -55°C to +150°C
• Applications: Load switching, DC-DC converters, power management in portable devices

Product features:

• Logic-level gate drive: Operates with low gate voltages compatible with standard logic circuits
• Low R_DS(on): Minimal conduction loss for improved efficiency
• Compact SOT-23 package: Saves space in dense circuit designs
• Fast switching: Reduces power loss in high-speed applications
• P-Channel configuration: Simplifies high-side switching
