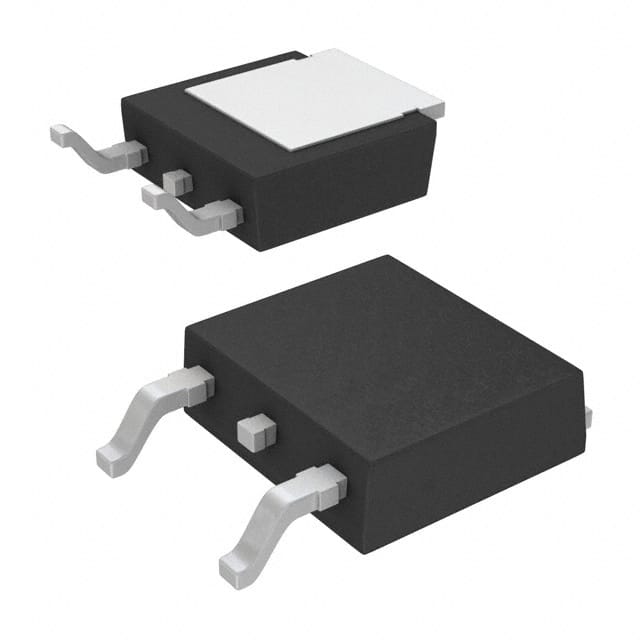

IPD30N03S2L-20 – 30V 42A N-Channel MOSFET in DPAK Package

Description

Technical specifications:

• MOSFET type: N-channel
• Drain-source voltage (VDS): 30V
• Continuous drain current (ID): 42A @ 25°C
• RDS(on): 6.5 mΩ max at VGS = 10V
• Gate threshold voltage (VGS(th)): 1.0V to 2.5V
• Gate charge (Qg): Low total gate charge for fast switching
• Package: DPAK (TO-252)
• Operating temperature range: -55°C to +175°C
• Applications: Automotive ECU, DC-DC converters, load switching, battery protection circuits

Product features:

• Low RDS(on): Extremely low on-state resistance of 6.5 mΩ for high efficiency.
• High current handling: Supports up to 42A continuous drain current (Tc = 25°C).
• Logic-level gate drive: Operates with standard 5V gate drive signals.
• Fast switching: Suitable for high-speed applications and reduced switching losses.
• Automotive qualified: AEC-Q101 certified for reliable automotive use.
• Compact package: DPAK (TO-252) surface-mount package for space-constrained designs.
