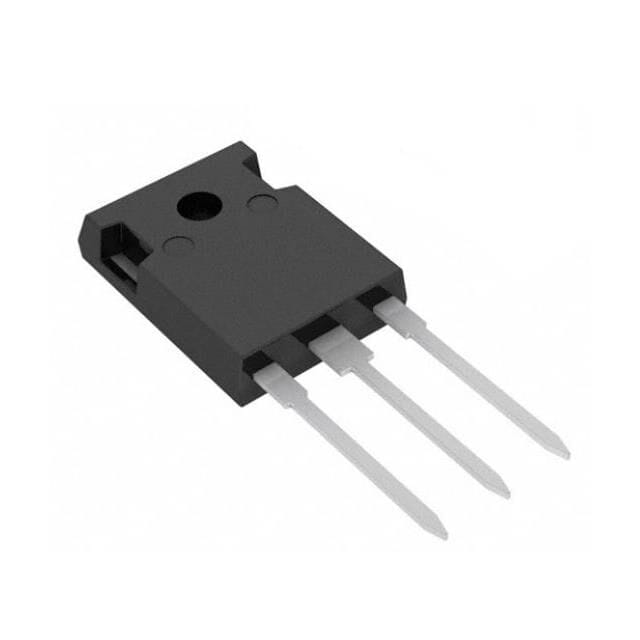

IKW50N60H3 – 600V, 50A High-Speed IGBT with Soft Switching

The IKW50N60H3 is a 600V, 50A high-performance IGBT from Infineon, utilizing third-generation HighSpeed 3 technology. This device is designed for high-efficiency power switching in motor drives, UPS systems, inverters, and industrial control applications requiring fast switching and low energy loss.

Product Brochure

Description

Technical specifications:

  • IGBT type: HighSpeed 3 IGBT
  • Collector-emitter voltage (Vce): 600V
  • Continuous collector current (Ic): 50A
  • VCE(sat): 1.85V (typical) at 25Β°C
  • Switching frequency: Optimized for up to 40 kHz
  • Gate-emitter voltage (Vge): Β±20V
  • Package: TO-247 3-pin
  • Operating junction temperature: -55Β°C to +150Β°C
  • Applications: Motor drives, UPS, welders, solar inverters, induction heating

Product features:

  • 600V blocking voltage: Suitable for medium to high voltage applications.
  • High current capability: Continuous collector current of 50A with low conduction losses.
  • High-speed switching: Optimized for soft switching applications with minimal switching losses.
  • Low VCE(sat): Reduces power dissipation and improves efficiency.
  • Robust design: Withstands harsh electrical and thermal conditions.
  • TO-247 package: Ensures excellent thermal performance and mechanical reliability.
