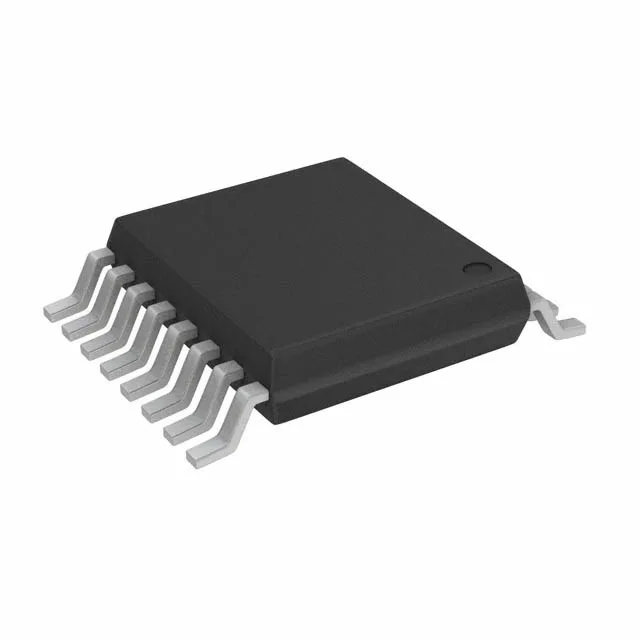

74VHC123AMTCX – Dual Retriggerable Monostable Multivibrator (onsemi)

Technical Specifications:

• Type: Dual Retriggerable Monostable Multivibrator
• Supply Voltage Range: 2.0V to 5.5V
• Propagation Delay: 8.1ns (typical) at 5V
• Output Current: ±8mA
• Operating Temperature Range: -40°C to 85°C
• Package Type: TSSOP-16, 16-pin, surface-mount

Product Features:

• Dual Multivibrator Design: Features two independent monostable multivibrators for flexible timing control.
• High-Speed Operation: Operates in the Very High-Speed CMOS (VHC) family, offering fast response times.
• Retriggerable Function: Allows pulse width extension with additional triggers during operation.
• Wide Voltage Range: Supports 2.0V to 5.5V, compatible with various logic levels.
• Low Power Consumption: Optimized for minimal quiescent current, ideal for energy-efficient designs.
• Schmitt Trigger Inputs: Ensures noise immunity and stable triggering.
• Compact Package: Housed in a 16-pin TSSOP package for space-saving surface-mount applications.
