TP5552-SR – Dual Chopper-Stabilized Zero-Drift Operational Amplifier

Description

Technical Specifications:

• Amplifier Type: Chopper-Stabilized Zero-Drift
• Number of Channels: 2
• Gain Bandwidth Product: 3.5 MHz
• Slew Rate: 2.5 V/µs
• Input Offset Voltage: 5 µV (maximum)
• Input Bias Current: 50 pA (typical)
• Supply Voltage Range: 1.8 V to 5.5 V
• Supply Current: 550 µA per amplifier
• Operating Temperature Range: -40°C to +125°C

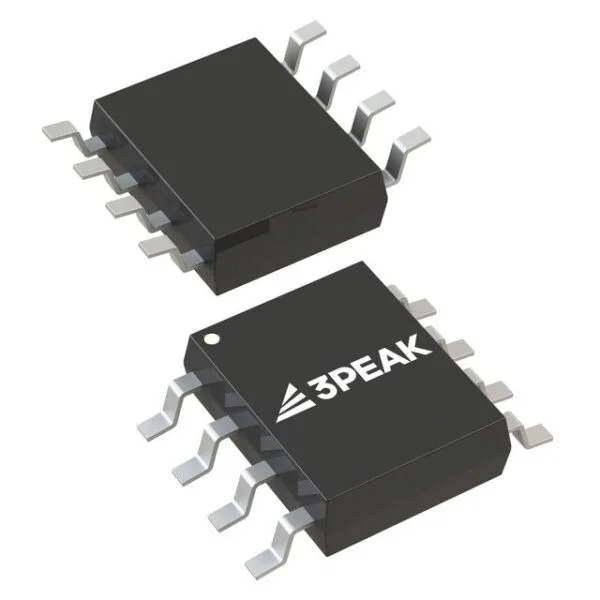

• Package Type: 8-pin SOP

Product Features:

• Ultra-Low Input Offset Voltage: Maximum of 5 µV ensures high precision in signal processing.
• Zero-Drift Performance: Offset drift of 0.05 µV/°C (maximum) provides stable operation over temperature variations.
• Low Noise: Input noise voltage of 15 nV/√Hz at 1 kHz with no 1/f noise corner down to 0.1 Hz.
• Wide Bandwidth: Gain bandwidth product of 3.5 MHz supports high-speed applications.
• Rail-to-Rail Input and Output: Enhances dynamic range and flexibility in design.
• Low Power Consumption: Supply current of 550 µA per amplifier suitable for battery-powered devices.
• Wide Supply Voltage Range: Operates from 1.8 V to 5.5 V, accommodating various power supply configurations.
• High Slew Rate: 2.5 V/µs enables rapid response to input changes.
