SSM2603CPZ-REEL7 – Low Power Stereo Audio Codec

The SSM2603CPZ-REEL7 is a high-quality, low-power stereo audio codec designed for portable digital audio applications. With 24-bit ADCs and DACs, it ensures exceptional audio performance for devices such as mobile phones, MP3 players, and portable gaming consoles.

Product Brochure

Description

Technical Specifications:

  • Resolution: 24-bit ADC and DAC
  • Analog Supply Voltage: 1.8V to 3.6V
  • Digital Core Supply Voltage: 1.5V to 3.6V
  • Digital I/O Supply Voltage: 1.8V to 3.6V
  • Operating Temperature Range: -40°C to +85°C

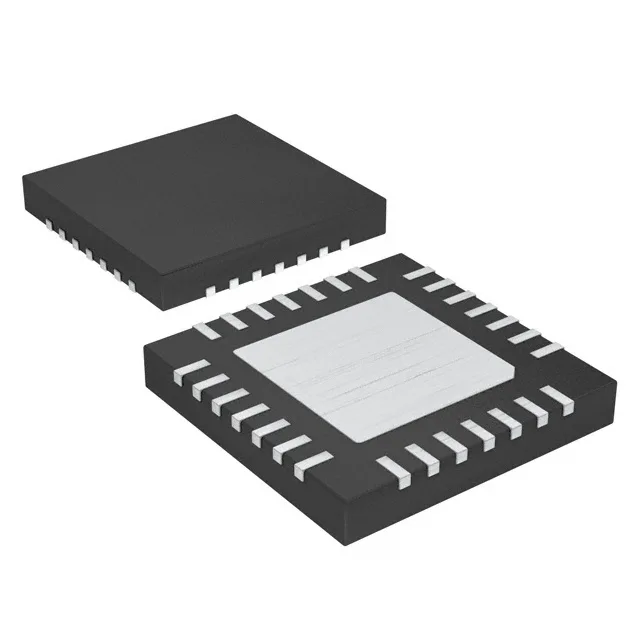

  • Package Type: 28-LFCSP-WQ (5 mm × 5 mm)
  • Applications: Ideal for mobile phones, MP3 players, portable gaming devices, educational toys, and other portable electronics.

Product Features:

  • High-Resolution Audio: Features 24-bit analog-to-digital (ADC) and digital-to-analog (DAC) converters for superior sound quality.
  • Low Power Consumption: Optimized for battery-powered devices, extending operational life.
  • Flexible Input Options: Includes stereo line inputs and a monaural microphone input with programmable gain amplifiers.
  • Wide Sampling Rates: Supports audio sampling rates from 8 kHz to 96 kHz, accommodating various audio standards.
  • Digital Audio Interface: Compatible with I²S and PCM formats for seamless integration with digital systems.
  • Programmable Features: Software control over volume, mute, and power management functions for customizable operation.
  • Compact Package: Available in a 28-lead, 5 mm × 5 mm lead frame chip scale package (LFCSP) for space-constrained designs.
