SP3072EEN-L/TR – 3.3V RS-485/RS-422 Transceiver with ±15kV ESD Protection

Description

Technical Specifications:

• Protocol: RS-485/RS-422
• Number of Drivers/Receivers: 1 Driver / 1 Receiver
• Data Rate: Up to 250 kbps
• Supply Voltage Range: 3.0V to 3.6V
• Driver Differential Output Voltage: ±1.5V minimum
• Receiver Input Sensitivity: ±200mV
• Operating Temperature Range: -40°C to +85°C

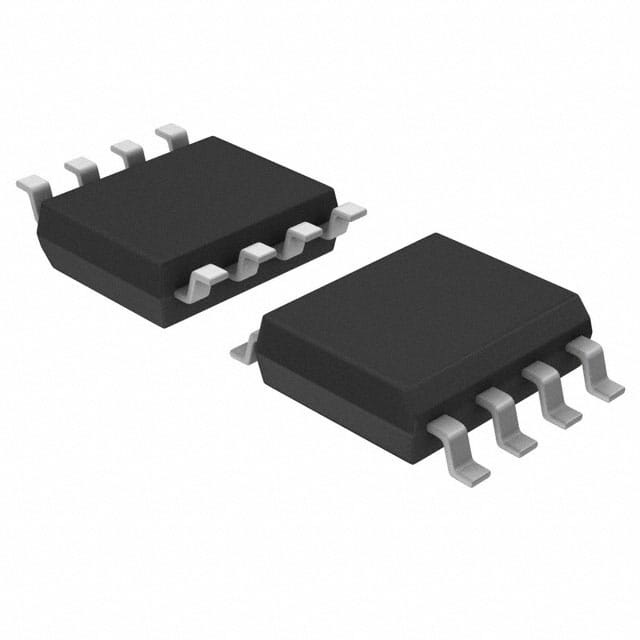

• Package / Case: 8-SOIC (0.154″, 3.90mm Width)
• Mounting Type: Surface Mount

Product Features:

• High ESD Protection: Withstands electrostatic discharges up to ±15kV, enhancing device reliability in harsh environments.
• Low Power Consumption: Operates efficiently with a low quiescent current, making it suitable for power-sensitive applications.
• Enhanced Failsafe Receiver: Ensures a logic-high output when the receiver inputs are open, shorted, or terminated but undriven, preventing erroneous data reception.
• 1/8 Unit Load: Allows up to 256 transceivers on a single bus, supporting extensive network configurations.
• Compact SOIC-8 Package: Offers a space-saving design suitable for high-density circuit boards.
