SAK-TC233L-32F200N AC – 32-bit AURIX™ TriCore™ automotive microcontroller

Description

Technical specifications:

• Microcontroller type: 32-bit AURIX™ TC233L
• CPU frequency: Up to 200 MHz
• Flash memory: 2 MB
• RAM: 192 KB
• Voltage supply: 3.3V core with 5V-tolerant I/O
• Interfaces: 2x CAN FD, LIN, SPI, UART, I²C
• Timers: GPT12, CCU6, and GTM
• ADC: High-resolution ADC channels for sensor input

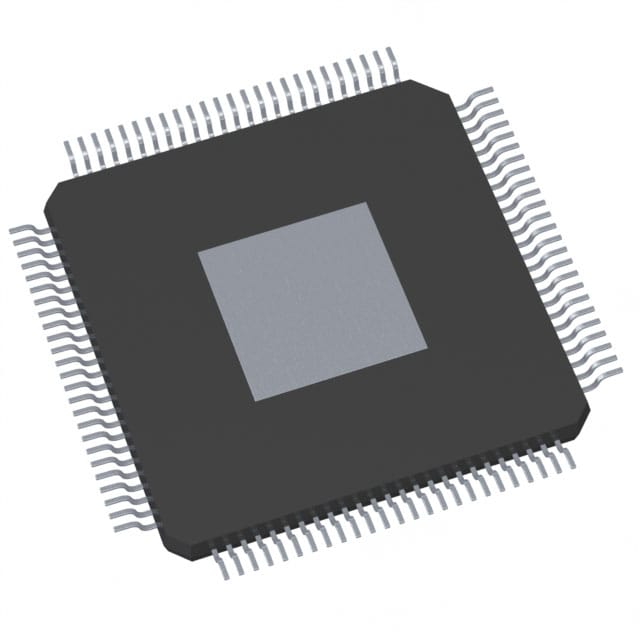

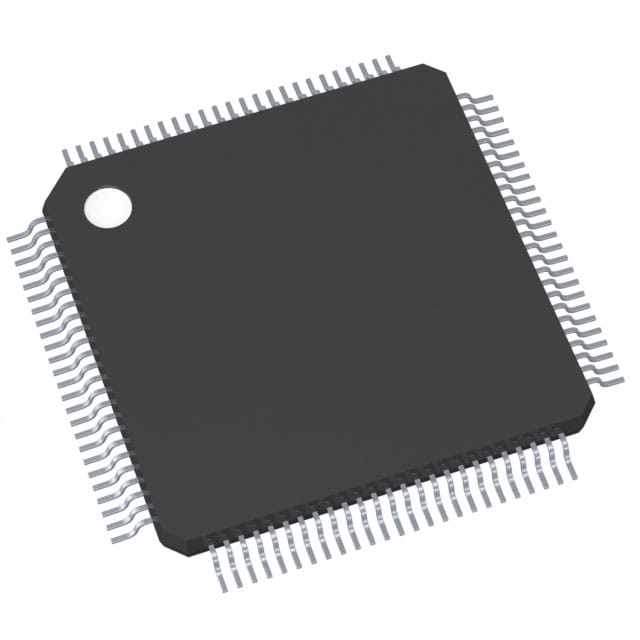

• Package type: LQFP-100
• Operating temperature range: -40°C to +125°C
• Applications: Motor control, body domain controllers, gateway systems, and EV sub-systems

Product features:

• Efficient TriCore™ v1.6 CPU: Operating at up to 200 MHz with deterministic real-time performance.
• Memory optimized: 2MB Flash and 192KB RAM for embedded applications.
• Safety-compliant design: ISO 26262 ready up to ASIL-B applications.
• Integrated security module: HSM for secure communications and authentication.
• Multiple communication interfaces: CAN FD, LIN, UART, SPI, and I²C.
• Optimized power consumption: Low-power modes for energy-efficient systems.
