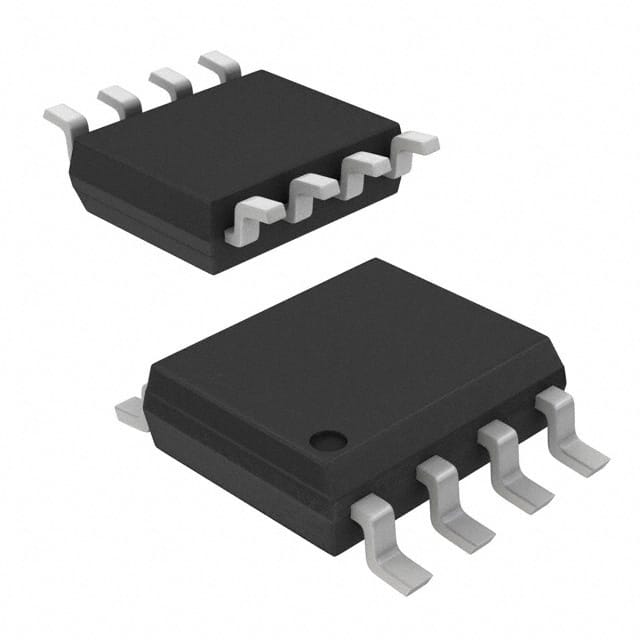

MB85RC256VPNF-G-JNERE1 – 256Kb FRAM Memory with I²C Interface

Description

Technical Specifications:

• Memory Capacity: 256Kb (32K × 8)
• Memory Type: Ferroelectric RAM (FRAM)
• Interface: I²C (100 kHz / 400 kHz)
• Operating Voltage: 1.8V – 3.6V
• Endurance: 10¹³ read/write cycles
• Data Retention: 10 years at 85°C
• Operating Temperature: -40°C to +85°C
• Package Type: 8-pin SOP

Product Features:

• Non-Volatile FRAM: Provides reliable data retention without a backup battery.
• High Endurance: Virtually unlimited read/write cycles (10¹³ cycles).
• Fast Write Speed: No delay compared to EEPROM or Flash memory.
• I²C Interface: Supports standard (100 kHz) and fast mode (400 kHz) communication.
• Low Power Consumption: Operates efficiently in power-sensitive applications.
• Wide Operating Voltage: Compatible with 1.8V to 3.6V systems.
• Extended Temperature Range: Suitable for harsh environments.
• Compact Package: Available in an 8-pin SOP package for easy integration.
