LFXP2-8E-5FTN256C – Lattice XP2 FPGA, 8K LUTs, 256-BGA

Description

Technical specifications:

• Logic elements: 8,000
• Embedded memory: ~226 Kbits
• Operating voltage: 1.2V core, 3.3V I/O
• I/O pins: Up to 173 user I/Os

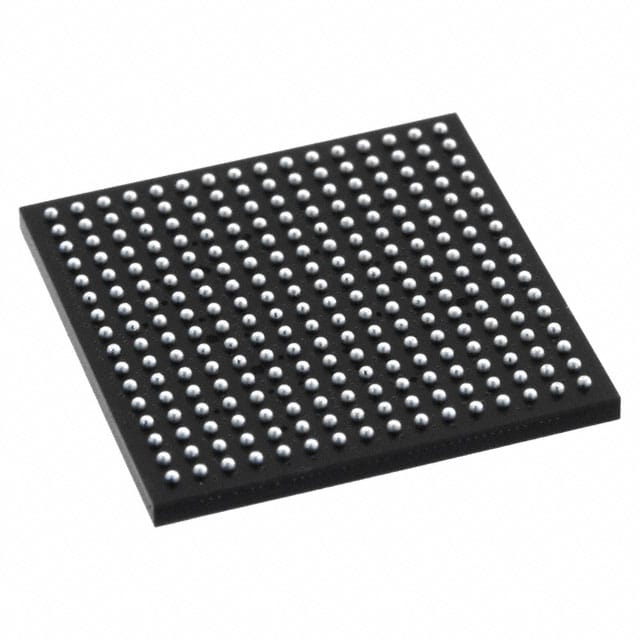

• Package: FTN256 (256-ball Fine-pitch BGA)
• Speed grade: -5 (standard performance)
• Configuration: On-chip flash (non-volatile)
• Temperature range: Commercial (0°C to +85°C)
• Applications: Industrial automation, video processing, communications, security, and medical devices

Product features:

• 8K logic elements: Supports complex digital designs in a compact footprint
• Non-volatile flash-based FPGA: Enables instant-on behavior and secure configuration
• Embedded RAM blocks: Provides flexible memory for data buffering and processing
• Flexible I/O: Supports multiple standards including LVTTL, LVCMOS, and differential I/O
• Low power operation: Optimized for power-sensitive designs
• System-level integration: Includes DSP blocks, PLLs, and embedded functions
