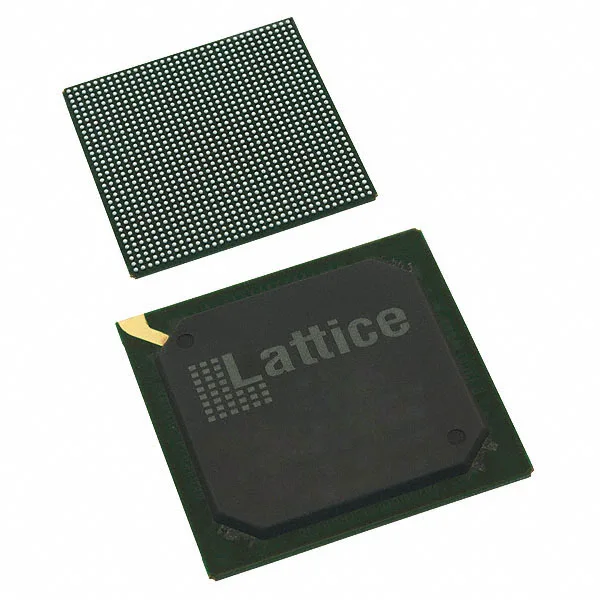

LFE3-70EA-7FN1156I – Lattice ECP3 FPGA, 70K LUTs, Industrial Grade, 1156-FBGA

Description

Technical specifications:

• Logic cells: Over 68,000 (70K LUTs)
• Embedded RAM: 4.4 Mbits
• DSP blocks: 320 18×18 multipliers
• SERDES: 4 channels, up to 3.2 Gbps
• Package: 1156-ball FBGA
• Speed grade: -7 (High-performance grade)
• Core voltage: 1.2V; I/O up to 3.3V
• Temperature range: -40°C to +100°C (industrial)
• Applications: Industrial automation, automotive, aerospace, telecom, and medical systems

Product features:

• 70K logic elements: Ideal for complex and high-speed digital logic design
• High-speed SERDES support: Up to 3.2 Gbps for PCIe, Ethernet, and other protocols
• Industrial temperature range: Designed for harsh environments from -40°C to +100°C
• Low power core: Power-efficient architecture for embedded and industrial systems
• Integrated DSP blocks: Supports signal processing, audio/video, and data computation
• Flash-based configuration: Secure and reliable boot-up with instant-on capability
