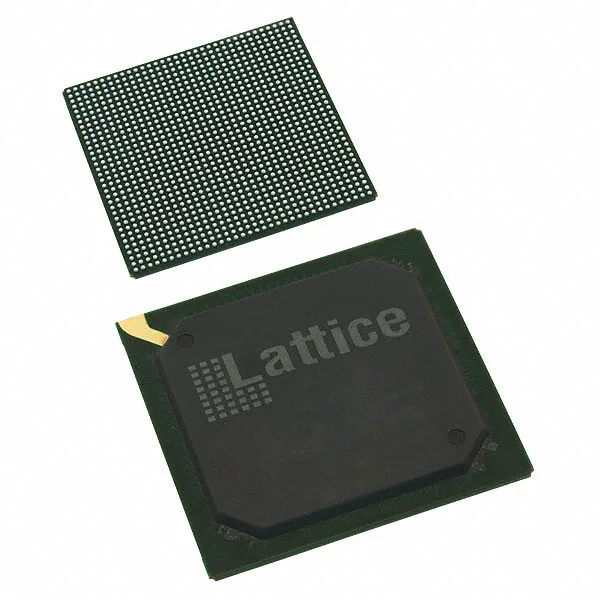

LFE3-70EA-7FN1156C – Lattice ECP3 FPGA, 67K LUTs, SERDES, 1156-BGA

Description

Technical specifications:

• Logic elements: ~67,000 (approx. 70K LUTs)
• Embedded memory: 3.2 Mbits
• DSP blocks: 320 18×18 multipliers
• High-speed I/O: Up to 16 SERDES channels
• Package: 1156-ball Fine Pitch BGA (FN1156)
• Operating voltage: 1.2V core, various I/O voltages
• Speed grade: -7 (high performance)
• Operating temperature: 0°C to +85°C (commercial)
• Applications: Video/image processing, telecom infrastructure, industrial networking, high-speed bridging

Product features:

• 67K logic elements: Enables complex logic and data processing
• Integrated SERDES: High-speed serial interfaces for gigabit communication
• Dedicated DSP blocks: Ideal for real-time signal processing and filtering
• Rich I/O support: Supports a wide range of standards including LVDS, LVCMOS, and PCI
• On-chip memory: Over 3Mb of embedded RAM
• Low power consumption: Efficient for performance-per-watt-sensitive designs
