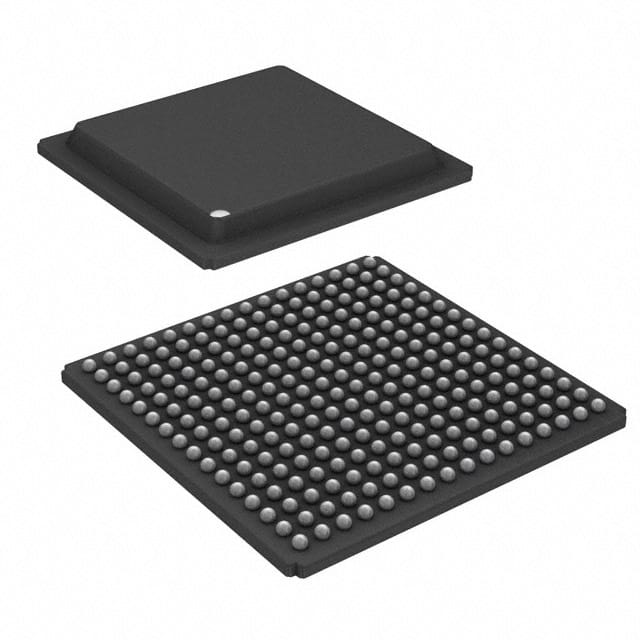

LCMXO1200C-4FTN256C – Lattice MachXO FPGA, 1200 LUTs, 256-BGA

Description

Technical specifications:

• Logic elements: 1,200 LUTs
• Embedded memory: 64 Kbits of EBR
• Operating voltage: 1.2V core, 3.3V I/O
• I/O count: Up to 207 user I/Os
• Package: FTN256 (256-ball Fine-pitch BGA)
• Speed grade: -4 (standard performance)
• Temperature range: Commercial (0°C to +85°C)
• Configuration: Non-volatile flash-based
• Applications: Embedded control, bridging, I/O expansion, industrial and communication systems

Product features:

• 1200 logic elements: Ideal for control and glue logic applications
• Instant-on non-volatile memory: Enables immediate functionality at power-up
• Embedded memory: Includes EBRs (Embedded Block RAM) for buffering and storage
• Programmable I/O: Supports LVTTL, LVCMOS, and differential standards
• Low power consumption: Optimized for portable and battery-powered systems
• On-chip oscillator and PLL: Reduces external component needs
