The IXFH26N50Q is a high-performance N-Channel Power MOSFET designed for high-voltage applications. With a voltage rating of 500V and a current capacity of 26A, it is ideal for power conversion, switching, and motor control applications.
Technical Specifications:
Model Number: IXFH26N50Q
Type: N-Channel Power MOSFET
Voltage Rating (V<sub>DSS</sub>): 500V
Continuous Drain Current (I<sub>D</sub>): 26A
On-Resistance (R<sub>DS</sub>(on)): < 0.35Ω
Gate Threshold Voltage (V<sub>GS(th)</sub>): 2-4V
Maximum Power Dissipation: 250W

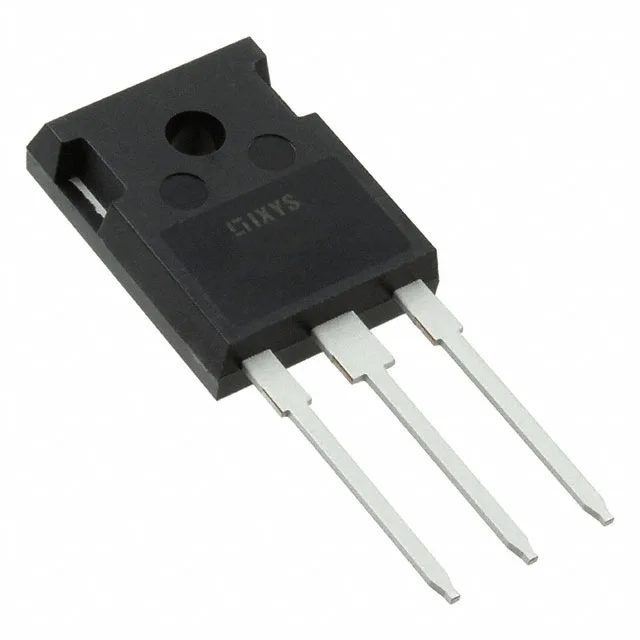

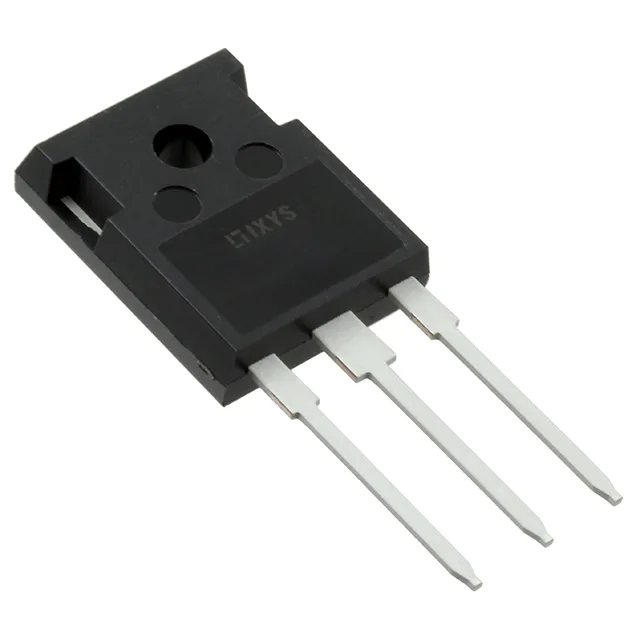

Package Type: TO-247
Operating Temperature Range: -55°C to +150°C
Product Features:
High Voltage Capability: 500V drain-to-source voltage for enhanced performance in demanding applications.
Moderate Current Handling: Supports continuous drain current of up to 26A.
Low On-Resistance (R<sub>DS</sub>(on)): Reduces energy losses during operation.
Fast Switching Speed: Optimized for high-frequency switching.
TO-247 Package: Provides efficient heat dissipation and mechanical stability.
