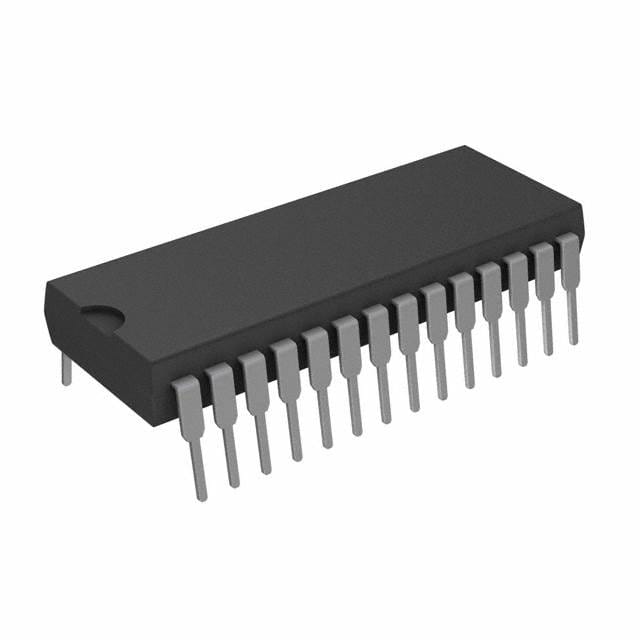

ISD2560P – 60-Second Voice Record and Playback IC

Description

Technical specifications:

• Audio duration: 60 seconds (ISD2560 series)
• Storage type: Non-volatile analog storage
• Sampling frequency: 6.4kHz (typical)
• Operating voltage: 4.5V to 5.5V
• Interface: Parallel address/data inputs or push-button control
• Package: DIP-28 (through-hole)
• Operating temperature: 0°C to +70°C
• Applications: Toys, alarms, answering machines, voice instructions, consumer electronics

Product features:

• 60-second audio capacity: Ideal for long-duration messages or prompts
• Push-button operation: Simplified control for record/playback
• On-chip microphone preamp and speaker driver: Minimal external components required
• Non-volatile storage: Retains audio even after power-off
• Multiple addressing modes: Supports random, sequential, or looped playback
• Analog storage technology: Provides clear, natural voice quality
