IS62WV5128DBLL-45TLI – 4Mb Low Power CMOS SRAM, 45ns, TSOP, Industrial Temp

Description

Technical specifications:

• Memory density: 4Mb (512K x 8)
• Access time: 45ns
• Operating voltage: 2.7V to 3.6V
• Standby current: 1µA (typical)
• Active current: 30mA (typical)

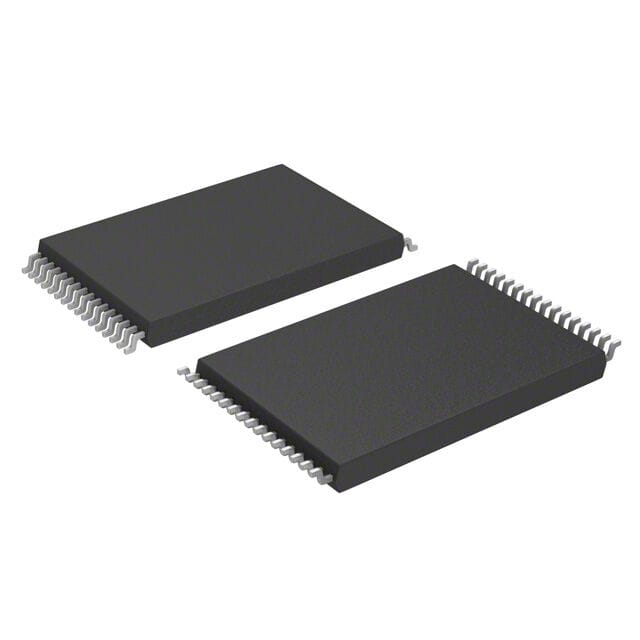

• Package: 32-pin TSOP (Type I)
• Temperature range: -40°C to +85°C (industrial)
• Applications: Industrial control, automotive electronics, embedded systems, data loggers

Product features:

• High capacity: 4 Megabit (512K x 8) static RAM
• Fast access time: 45ns for high-speed applications
• Low power operation: Ultra-low standby and active currents
• Fully static design: No clock or refreshing required
• Wide operating voltage: 2.7V to 3.6V
• Industrial temperature support: -40°C to +85°C
