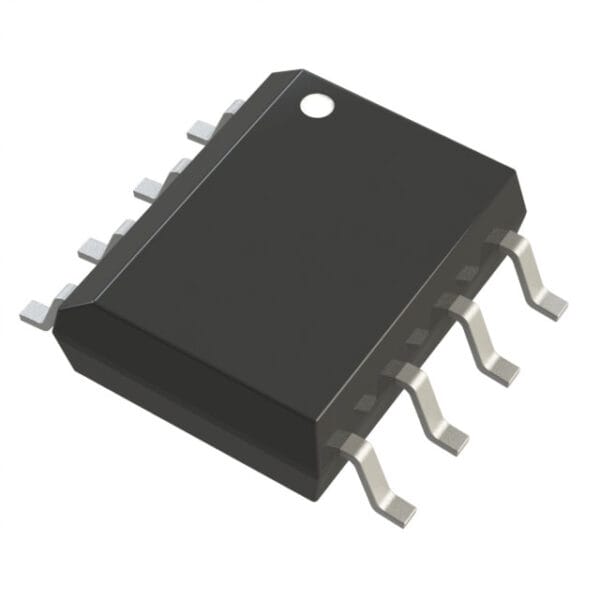

IS25LQ040B-JNLE – 4Mb Serial NOR Flash, SPI Interface, Low Power

Description

Technical specifications:

• Memory type: Serial NOR Flash
• Density: 4Mb (512KB)
• Interface: SPI (Standard/Dual I/O)
• Operating voltage: 2.3V to 3.6V
• Operating temperature: -40°C to +85°C
• Package: 8-pin SOP (150 mils)
• Erase cycles: 100,000 per sector (typical)
• Applications: Embedded systems, IoT devices, medical electronics, data logging, firmware storage

Product features:

• Compact storage: 4 Megabit (512K x 8) capacity
• SPI interface: Standard serial interface up to 104MHz
• Fast performance: Up to 104MHz clock rate with dual I/O read support
• Low power design: Deep power-down and standby modes for energy efficiency
• High reliability: 100,000 program/erase cycles per sector
• Uniform sector architecture: 4KB, 32KB, and 64KB erase options
