IRGP4640PBF – 600V, 40A UltraFast IGBT with Soft Recovery Diode

Description

Technical specifications:

• IGBT type: NPT (Non-Punch Through)
• Collector-emitter voltage (Vces): 600V
• Collector current (Ic): 40A (continuous)
• Saturation voltage (VCE(on)): 2.0V at 40A
• Switching frequency: Up to 40 kHz
• Gate charge (Qg): 130nC
• Diode recovery time: 150ns (typical)

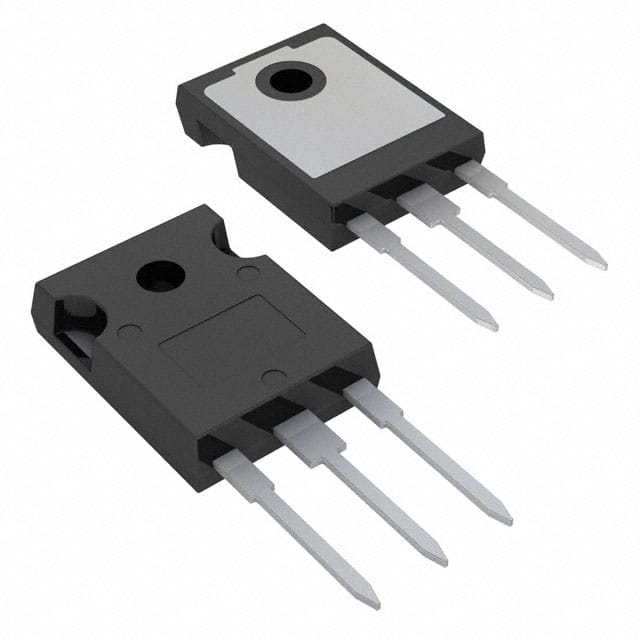

• Package: TO-247AC
• Operating temperature range: -55°C to +150°C
• Applications: Welding equipment, UPS, motor drives, industrial inverters, induction heating

Product features:

• High voltage rating: 600V breakdown voltage for industrial-grade performance.
• Low VCE(on): Minimizes conduction losses during high current operation.
• Ultrafast switching: Suited for high-frequency applications.
• Integrated soft recovery diode: Reduces EMI and switching losses.
• Robust TO-247AC package: Ensures good thermal dissipation and mechanical strength.
• RoHS compliant: Environmentally friendly, lead-free design.
