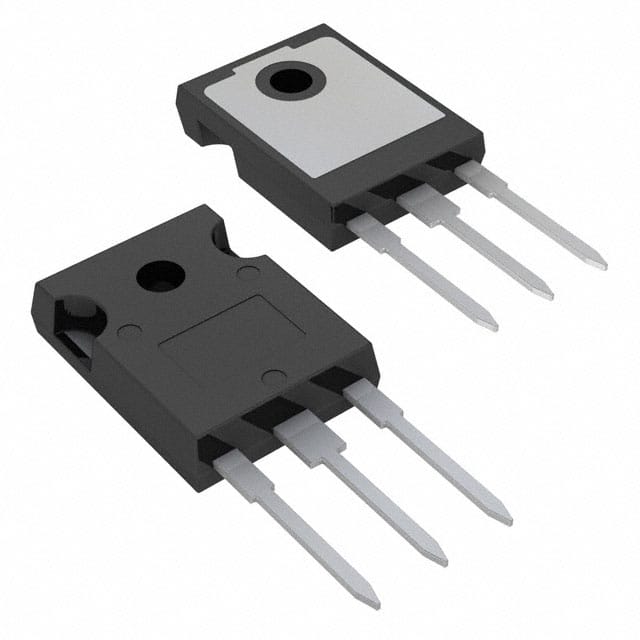

IRG4PC60UPBF – 600V UltraFast IGBT with Soft Recovery Diode

Description

Technical specifications:

• Collector-to-emitter voltage (V_CES): 600V
• Continuous collector current (I_C): 38A @ 25°C
• V_CE(sat): 1.85V @ 30A
• Gate charge: 160nC typical
• Diode recovery time: 160ns typical
• Package: TO-247AC
• Operating temperature: -55°C to +150°C
• Applications: Motor control, induction heating, UPS, solar inverters, welding equipment

Product features:

• High voltage capability: 600V collector-to-emitter voltage
• High current rating: 38A continuous collector current
• Ultrafast switching: Reduces switching losses in high-frequency applications
• Soft recovery diode: Integrated anti-parallel diode with low reverse recovery time
• Low V_CE(sat): Reduces conduction losses
• Rugged and reliable: Tailored for demanding industrial environments
