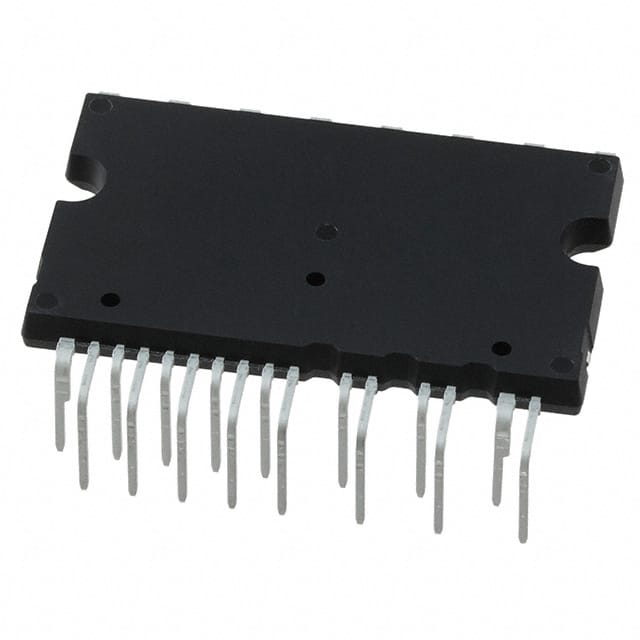

IKCM15L60GA – 600V, 15A Three-Phase Intelligent Power Module

Description

Technical specifications:

• Module type: Three-phase Intelligent Power Module (IPM)
• Input voltage: Up to 600V
• Output current: 15A (continuous)
• Switching devices: TRENCHSTOP™ IGBTs
• Gate driver technology: Silicon-on-Insulator (SOI)
• Package: DIP 36×21 (MDIP-24 Fullpack)
• Temperature monitoring: Integrated NTC thermistor
• Protection features: OCP, OTP, UVLO, cross-conduction prevention
• Operating temperature: -40°C to +150°C
• Applications: Home appliance motor drives, HVAC systems, industrial motor control

Product features:

• High integration: Combines six IGBTs, gate drivers, bootstrap diodes, and protection circuitry.
• TRENCHSTOP™ IGBT technology: Ensures low conduction and switching losses.
• SOI gate driver: Offers high ruggedness and negative voltage tolerance.
• Comprehensive protection: Built-in protection against overcurrent, overtemperature, and undervoltage.
• Built-in NTC thermistor: Enables real-time temperature monitoring and control.
• Open-emitter configuration: Facilitates precise phase current sensing.
