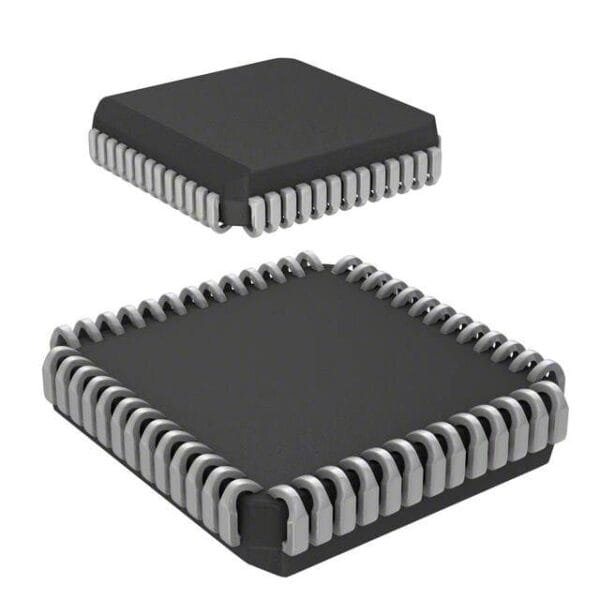

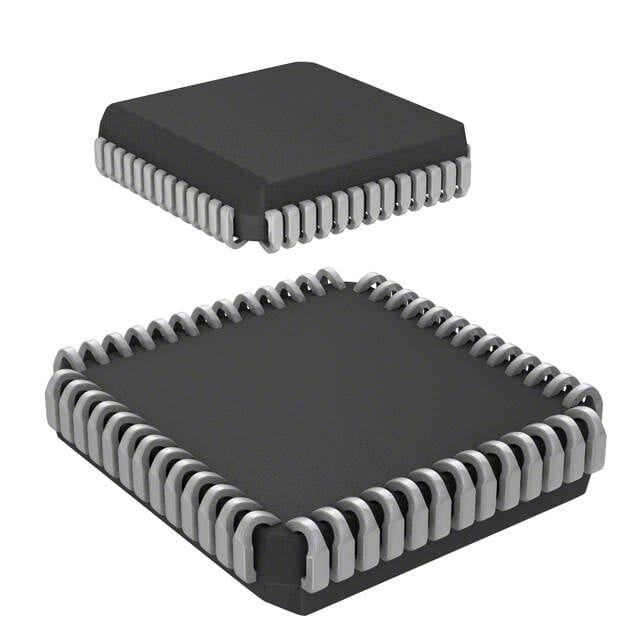

IDT7130SA100J – 1K x 8 Dual-Port Static RAM

Technical Specifications:

• Type: Dual-Port Static RAM
• Supply Voltage: 4.5V to 5.5V
• Memory Size: 1K x 8 (8Kbit)
• Access Time: 100ns (max)
• Operating Current: 120mA (typical active), 30mA (typical TTL standby)
• Standby Current: 5mA (typical CMOS standby)
• Operating Temperature: 0°C to +70°C (Commercial grade)
• Package Type: PLCC-48, 48-pin, surface-mount or through-hole compatible

Product Features:

• Dual-Port Access: Two independent ports enable simultaneous read/write operations for efficient data handling.
• High-Speed Performance: 100ns access time supports rapid data processing in real-time systems.
• Memory Capacity: 1K x 8 (8Kbit) SRAM for compact storage requirements.
• MASTER/SLAVE Compatibility: Can be used standalone or paired with IDT7140SA (SLAVE) for 16-bit or wider systems.
• Wide Voltage Range: Operates from 4.5V to 5.5V, compatible with TTL logic levels.
• Low Power Operation: CMOS technology reduces power consumption with standby modes.
• Compact Package: Housed in a 48-pin PLCC (Plastic Leaded Chip Carrier) for surface-mount or socketed applications.
• Industrial Reliability: Built for stable performance across a wide temperature range.
