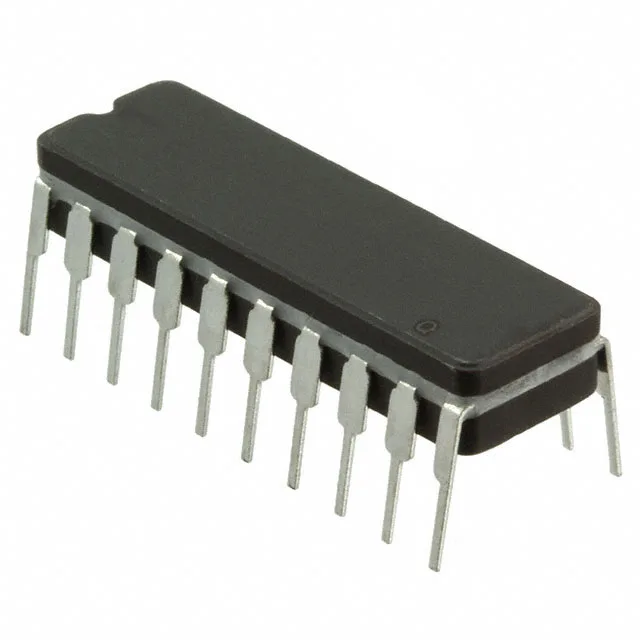

IDT54FCT245TDB – Octal Bidirectional Transceiver with 3-State Outputs

Description

Technical Specifications:

• Type: Octal Bidirectional Transceiver
• Logic Type: Non-Inverting
• Number of Bits: 8
• Output Type: 3-State
• Bus Hold: Yes, on data inputs

Product Features:

• Octal Transceiver: Contains eight independent transceiver channels for efficient 8-bit data transfer.
• Bidirectional Data Flow: Allows data transmission in either direction controlled by a direction pin.
• Non-Inverting Outputs: Transmits data without inverting the logic levels.
• 3-State Outputs: Provides high, low, and high-impedance states, enabling multiple devices to share a common bus.
• High-Speed Performance: Offers fast propagation delays suitable for high-frequency operation.
• Low Power Consumption: Designed with advanced CMOS technology for efficient power utilization.
• TTL Compatibility: Input and output levels are compatible with standard TTL (Transistor-Transistor Logic) levels.
• Bus Hold on Data Inputs: Eliminates the need for external pull-up or pull-down resistors to hold unused inputs at a valid logic level.
• Temperature Range: Operates over a wide temperature range suitable for various environments.
• Package Type: Typically available in a 20-pin DIP or other surface-mount equivalents.
