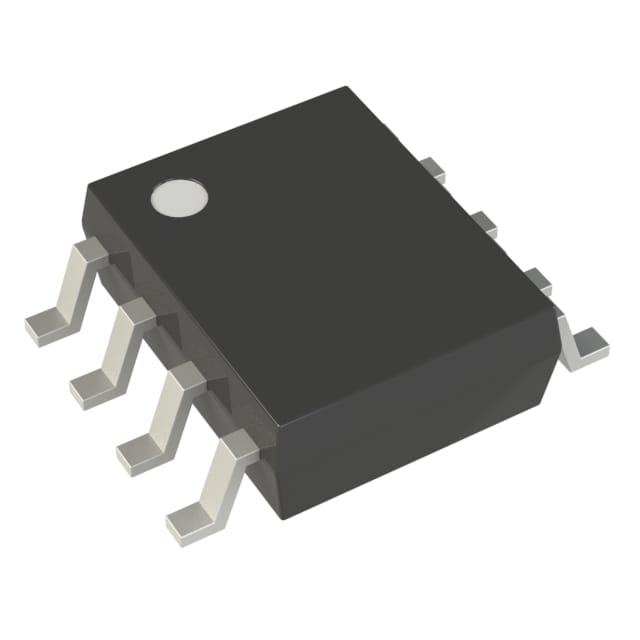

ICS551MILFT – 1-to-4 Clock Buffer

Technical Specifications:

• Type: Clock Buffer
• Supply Voltage: 3.0V to 5.5V
• Output Frequency: Up to 160MHz
• Output Type: CMOS/TTL
• Number of Outputs: 4
• Propagation Delay: 4ns (typical) at 5V
• Skew: 250ps (typical) between outputs
• Operating Temperature: -40°C to +85°C
• Package Type: SOIC-8, 8-pin, surface-mount

Product Features:

• Clock Distribution: Single input to four low-skew outputs for efficient clock signal replication.
• High-Speed Performance: Supports frequencies up to 160MHz for fast clocking needs.
• Low Skew: Ensures minimal timing differences between outputs (250ps typical).
• Wide Voltage Range: Operates from 3.0V to 5.5V, compatible with various logic levels.
• Low Power Consumption: Optimized CMOS design reduces quiescent current.
• Compact Package: Housed in an 8-pin SOIC (Small Outline IC) for small-footprint designs.
• Tape and Reel: Supplied in tape-and-reel format (LFT) for automated assembly, 2,500 units per reel.
• Industrial Grade: Reliable operation across extended temperature ranges.
