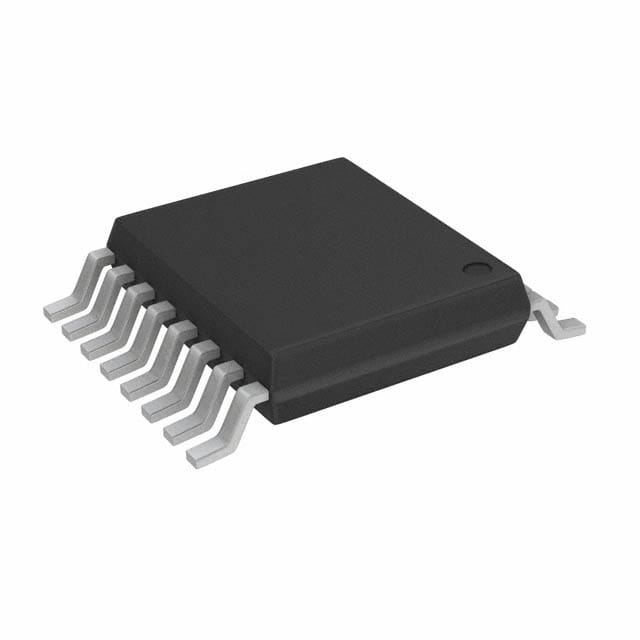

ICL3221EIVZ-T – High-Speed RS-232 Transceiver, 1 Tx / 1 Rx, 250kbps

Description

Technical specifications:

• Transceiver type: RS-232
• Number of transmitters/receivers: 1 Tx / 1 Rx
• Data rate: Up to 250kbps
• Operating voltage: 3.0V to 5.5V
• Protection: ±15kV ESD (HBM) on RS-232 lines
• Shutdown mode: Automatic power-saving when idle
• Package: 8-lead SOIC
• Operating temperature: -40°C to +85°C (Industrial grade)
• Applications: Embedded RS-232 interfaces, point-of-sale equipment, industrial controllers, battery-powered devices

Product features:

• Single transceiver: Provides one transmitter and one receiver channel for basic RS-232 communication
• High data rate: Supports up to 250kbps with low power consumption
• ESD protection: ±15kV ESD protection on RS-232 pins ensures interface robustness
• Low supply voltage: Operates from 3.0V to 5.5V, making it compatible with modern logic
• Auto-shutdown: Automatically reduces power consumption when idle
• Compact package: Available in space-saving 8-lead SOIC
