HIN202EIBNZ-T – Dual RS-232 Transceiver with ±15kV ESD Protection

Description

Technical specifications:

• Driver/Receiver count: 2 transmitters, 2 receivers
• Supply voltage: 5V nominal
• Data rate: Up to 250 kbps
• ESD protection: ±15kV HBM on RS-232 pins
• Operating temperature: -40°C to +85°C (Industrial grade)

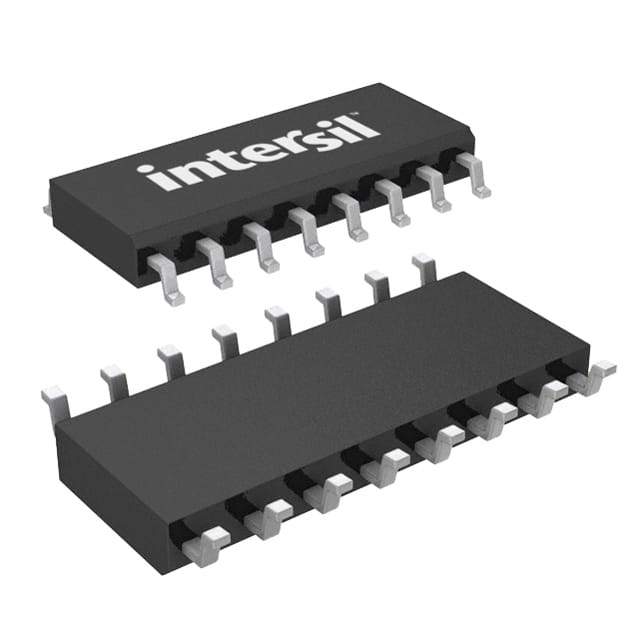

• Package: 16-pin SOIC (Narrow body)
• Shutdown function: Yes, with low power consumption
• Applications: Embedded systems, PCs, POS systems, industrial automation

Product features:

• Dual channel: 2 drivers and 2 receivers for full-duplex RS-232 communication
• ±15kV ESD protection: Human Body Model (HBM) protection on all RS-232 pins
• Low power shutdown: Reduces system power during idle operation
• Meets RS-232 standards: Compliant with EIA/TIA-232-E and V.28 protocols
• Integrated charge pump: Generates RS-232 voltage levels using external capacitors
• Wide operating range: 4.5V to 5.5V single supply
