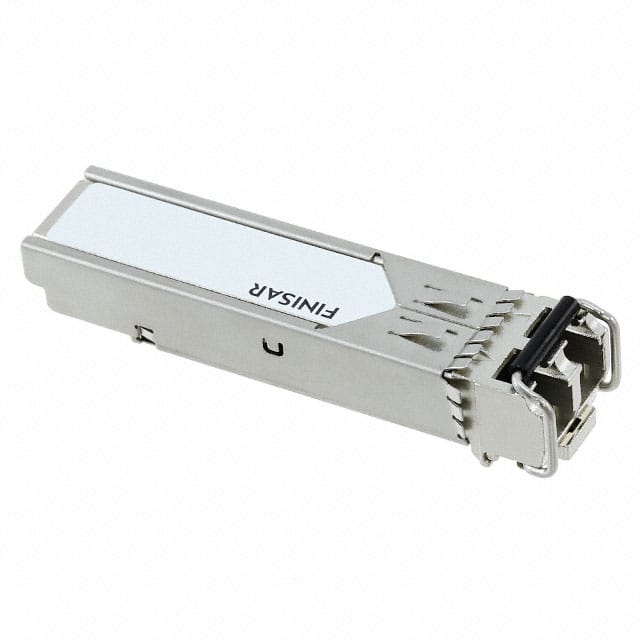

FTLF8524P2BNV – 4.25 Gb/s Short-Wavelength SFP Transceiver

Description

Technical Specifications:

• Data Rate: Up to 4.25 Gb/s
• Wavelength: 850nm
• Connector Type: Duplex LC
• Transmission Distance: Up to 500m on 50/125µm MMF; up to 300m on 62.5/125µm MMF
• Digital Diagnostics: Yes
• Operating Temperature Range: -20°C to +85°C
• Supply Voltage: 3.3V
• Compliance: SFP MSA, RoHS
• Applications: Fibre Channel (1G, 2G, 4G), 1000BASE-SX Ethernet, Storage Area Networks (SAN), Data Centers, and Networking Equipment.

Product Features:

• High-Speed Data Transmission: Supports data rates up to 4.25 Gb/s, suitable for Fibre Channel and Ethernet applications.
• Short-Wavelength Operation: Utilizes an 850nm Oxide Vertical-Cavity Surface-Emitting Laser (VCSEL) for reliable performance over multimode fiber.
• Hot-Pluggable SFP Footprint: Allows for easy installation and replacement without system downtime.
• Digital Diagnostic Functions: Equipped with built-in digital diagnostics for real-time monitoring of parameters like temperature and optical power.
• Duplex LC Connector: Features a standard LC duplex connector for straightforward integration.
• Extended Reach: Capable of transmitting up to 500 meters on 50/125µm multimode fiber and 300 meters on 62.5/125µm multimode fiber.
• RoHS Compliant: Meets environmental and safety standards by being lead-free and RoHS compliant.
