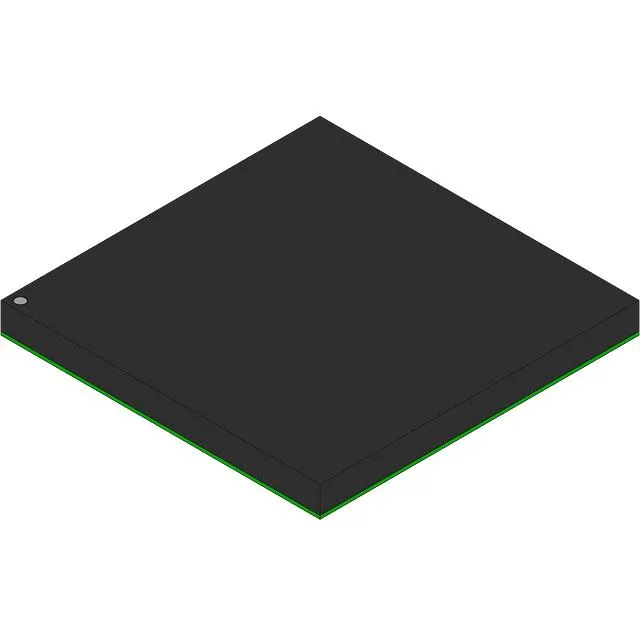

EP1SGX25FF1020I6N – Stratix GX Field-Programmable Gate Array

The EP1SGX25FF1020I6N is a high-performance FPGA from the Stratix GX series by Intel (formerly Altera). With 25,660 logic elements, integrated high-speed transceivers, and support for advanced I/O standards, this FPGA is ideal for high-bandwidth and complex digital applications such as networking, telecommunications, and high-performance computing.

Product Brochure

Description

Technical Specifications:

  • Logic Elements: 25,660
  • Embedded Memory: 1.9 Mbits
  • Maximum Frequency: 650 MHz
  • I/O Pins: 607
  • Transceiver Channels: 20 (3.1875 Gbps)
  • Voltage Range: 1.5V core, I/O 1.5V to 3.3V
  • Package: FBGA-1020
  • Temperature Range: -40°C to +100°C

Product Features:

  • High Logic Density: Contains 25,660 logic elements, suitable for complex digital designs and high-performance applications.
  • Integrated High-Speed Transceivers: Features multiple integrated transceivers supporting data rates up to 3.125 Gbps, ideal for high-speed communication applications.
  • Advanced I/O Standards: Supports a variety of I/O standards including LVDS, LVTTL, and more, ensuring compatibility with various systems.
  • In-System Programmability: Supports JTAG for in-system programming, allowing for easy updates and reconfiguration.
  • Powerful Clock Management: Includes PLLs (Phase-Locked Loops) for advanced clock management and timing optimization.
  • Package Type: 1020-Pin FineLine BGA (Ball Grid Array) for reliable integration and high-density board designs.
