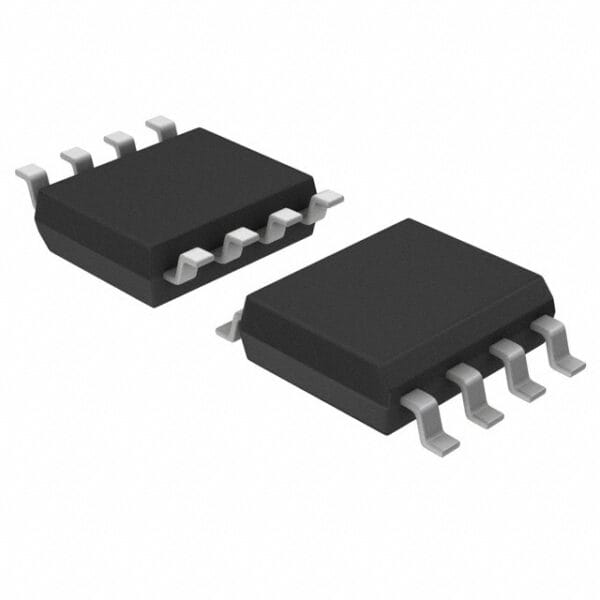

EL5171ISZ – 400MHz Single High-Speed Amplifier

Description

Technical specifications:

• Amplifier type: Single high-speed voltage feedback amplifier
• Bandwidth: 400MHz (-3dB)
• Slew rate: 1200V/μs
• Gain: Unity gain stable
• THD: 0.02% at 5MHz
• Supply voltage: 5V to 12V
• Output current: ±80mA
• Package: SOT-23-5
• Operating temperature: -40°C to +85°C
• Applications: Video buffering, communication systems, ADC drivers, medical imaging

Product features:

• Wide bandwidth: 400MHz - ideal for high-frequency applications
• High slew rate: 1200V/μs for fast transient response
• Low distortion: Ensures clean signal amplification
• Single supply operation: Operates from 5V to 12V
• Unity-gain stable: Reliable performance across multiple gain settings
• Small package: Compact SOT-23-5 design for space-constrained layouts
