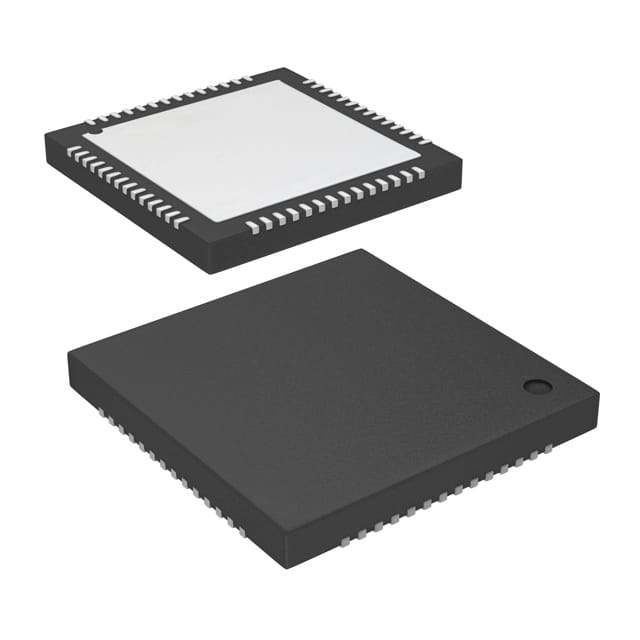

CY7C65630-56LTXC – USB 2.0 Hub Controller with Four Downstream Ports

Description

Technical Specifications:

• USB Compliance: USB 2.0, USB 1.1, and USB BC 1.1
• Number of Ports: 4 downstream USB ports
• Data Transfer Rate: Up to 480 Mbps (High-Speed USB)
• Interface: I²C for EEPROM configuration
• Operating Voltage: 3.3V
• Package Type: 56-pin QFN
• Operating Temperature: -40°C to +85°C
• Compliance: RoHS, USB-IF Certified

Product Features:

• USB 2.0 hub controller with support for four downstream ports
• 480 Mbps High-Speed USB 2.0 compliant for fast data transfer
• Backward compatible with USB 1.1 devices for universal connectivity
• Integrated transaction translator (TT) per port for optimized performance
• USB Battery Charging (BC) 1.1 support for smart power management
• Low power consumption for energy-efficient applications
• I²C EEPROM interface for custom configurations
• 56-pin QFN package for compact design integration
• Wide operating temperature range (-40°C to +85°C) for industrial applications
• RoHS compliant and lead-free
