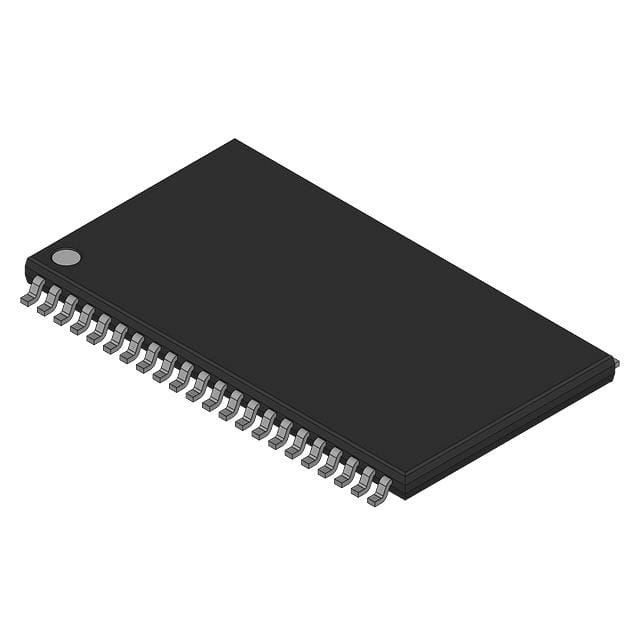

CY7C1041CV33-20ZXI – 4-Mbit (256K x 16) High-Speed CMOS Static RAM

Description

Technical Specifications:

• Memory Type: CMOS Static RAM
• Memory Density: 4 Mbit (256K x 16)
• Access Time: 20 ns
• Supply Voltage: 3.3V ± 0.3V
• Active Power Consumption: 90 mA
• Standby Power Consumption: 30 mA
• Operating Temperature: -40°C to +85°C
• Package: 44-pin TSOP II

Product Features:

• High-Speed Performance: 20 ns access time ensures quick data retrieval.
• Low Active Power: Consumes 90 mA during active operation.
• Low Standby Power: Consumes 30 mA in standby mode.
• Automatic Power-Down: Automatically enters power-down mode when deselected, reducing power consumption.
• TTL-Compatible Inputs and Outputs: Ensures compatibility with standard logic levels.
• Easy Memory Expansion: Features Chip Enable (CE) and Output Enable (OE) for straightforward memory expansion.
• Industrial Temperature Range: Operates reliably in temperatures ranging from -40°C to +85°C.
• Standard 44-Pin TSOP II Package: Compact and suitable for surface-mount applications.
