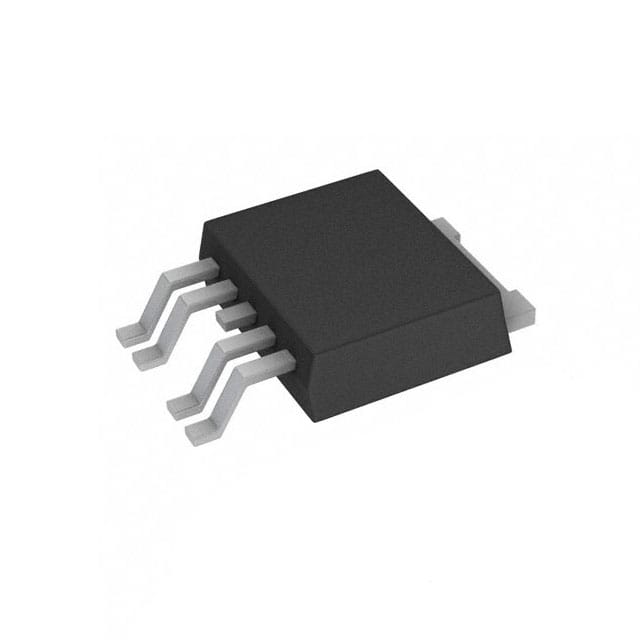

BTS50080-1TEA – Smart High-Side Power Switch

Description

Technical specifications:

• Switch type: Smart High-Side Power Switch
• Voltage range: 5.5V to 30V
• Overvoltage shutdown: 39V (typical)
• Continuous current: 10A
• Peak current: 70A (short circuit)
• On-state resistance: 16 mΩ at 150°C
• Standby current: Max. 6 µA at 25°C
• Package: PG-TO252-5-11 (DPAK)
• Mounting: Surface-mount
• Operating temperature: -40°C to +150°C
• Applications: Automotive ECUs, relay replacement, industrial power switches

Product features:

• High current capability: Nominal 10A continuous load current and peak capability up to 70A.
• Low RDS(on): 16 mΩ (typ.) at 150°C ensures low power loss during operation.
• Comprehensive protection: Short-circuit, overload, overtemperature, and overvoltage protection with latch function.
• Reverse battery protection: Integrated Reversave™ feature eliminates need for external diodes.
• Advanced diagnostics: Current sensing and fault feedback for intelligent system monitoring.
• Low quiescent current: Less than 6 µA in OFF mode enhances energy efficiency.
