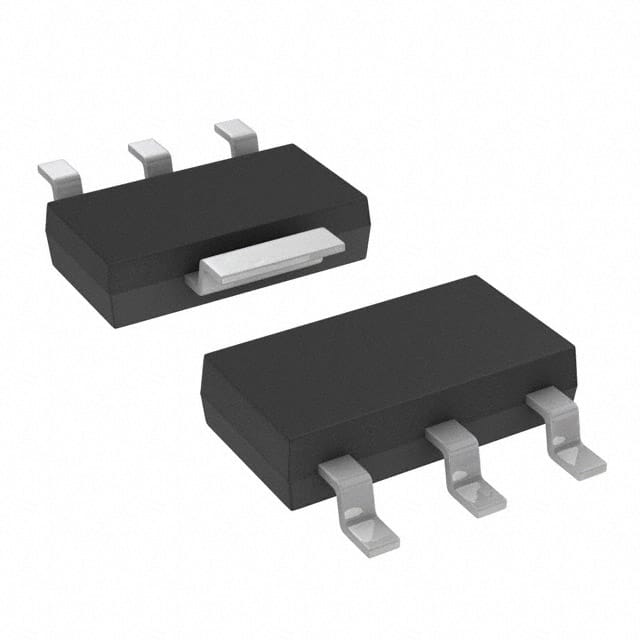

BSP315P L6327 – 60V P-Channel SOT-223 Power MOSFET

Description

Technical specifications:

• MOSFET type: P-Channel
• Drain-source voltage (Vds): -60V
• Continuous drain current (Id): -1.4A
• RDS(on): 0.27Ω max at Vgs = -10V
• Power dissipation (Pd): 2.6W
• Gate threshold voltage (Vgs(th)): -2.0V to -4.0V
• Package: SOT-223 (TO-261)
• Operating temperature range: -55°C to +150°C
• Applications: Load switching, battery-powered systems, LED drivers, DC-DC converters

Product features:

• P-Channel enhancement mode: Suitable for high-side switching operations.
• Low RDS(on): Provides minimal power loss and efficient switching.
• High-speed switching: Fast turn-on and turn-off times.
• Thermally efficient: Compact SOT-223 package with excellent heat dissipation.
• RoHS compliant: Lead-free and environmentally friendly.
