Description

Technical Specifications:

• ADC Resolution: 10-bit
• Supported Formats: NTSC, PAL, SECAM
• Supply Voltage: 3.3V (core) and 1.8V (I/O)
• Power Consumption: 100 mW (typical)
• Video Sampling Rate: Up to 54 MHz
• Operating Temperature Range: -40°C to +85°C

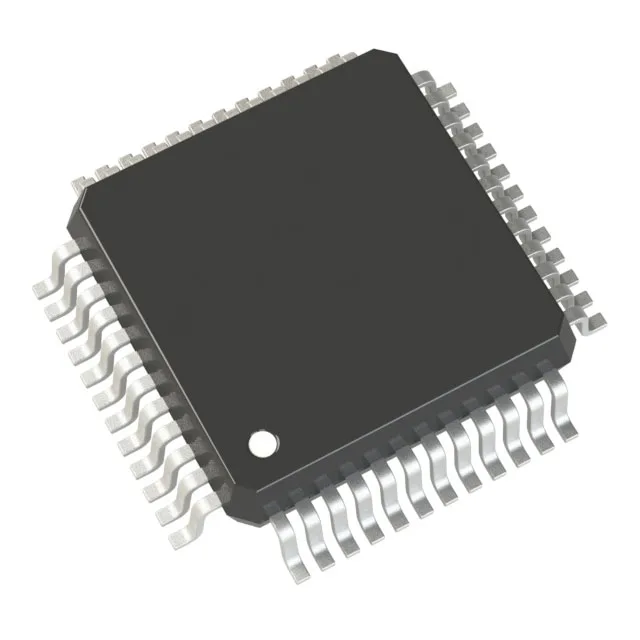

• Package Type: 48-lead LQFP (Quad Flat Package)

Product Features:

• High Logic Density: Features 256 macrocells and a high gate count, offering efficient and compact digital logic designs.
• Fast Performance: With a maximum pin-to-pin delay of 8 ns, it delivers fast and reliable performance for complex applications.
• In-System Programmability: Supports in-system programmability (ISP) via JTAG interface, allowing for flexible reconfiguration and easy updates.
• Flexible I/O Options: Provides 192 user I/O pins, offering versatility in design configurations and extensive application support.
• Low Power Consumption: Built on advanced CMOS technology, the EP2C5F256C8 offers low power consumption, ideal for power-sensitive applications.
