Description

Technical Specifications:

• Switch Type: Quad Single-Pole Single-Throw (SPST)
• Supply Voltage Range: 1.8V to 5.5V
• On-Resistance (RON): 2.5 Ω (typical)
• Switching Time: 20 ns (typical)
• Leakage Current: 0.01 μA (typical)
• Operating Temperature Range: -40°C to +85°C

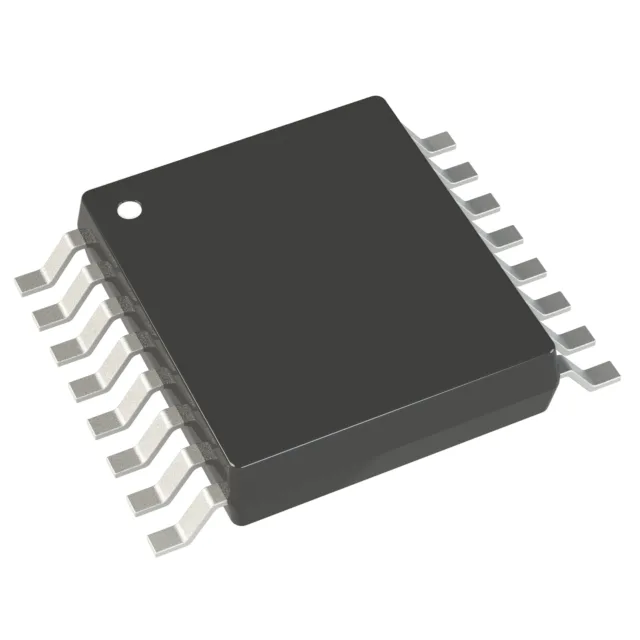

• Package Type: 16-lead TSSOP

Product Features:

• 4-Channel Analog Switch: Allows efficient signal routing and multiplexing.
• Low On-Resistance (RON): 2.5 Ω (typical) for minimal signal distortion.
• Wide Supply Voltage Range: Operates from 1.8V to 5.5V.
• High Speed Performance: Fast switching time of 20 ns.
• Break-Before-Make Switching: Prevents signal shorts during channel transitions.
• Compact Package: Available in a 16-lead TSSOP package.
