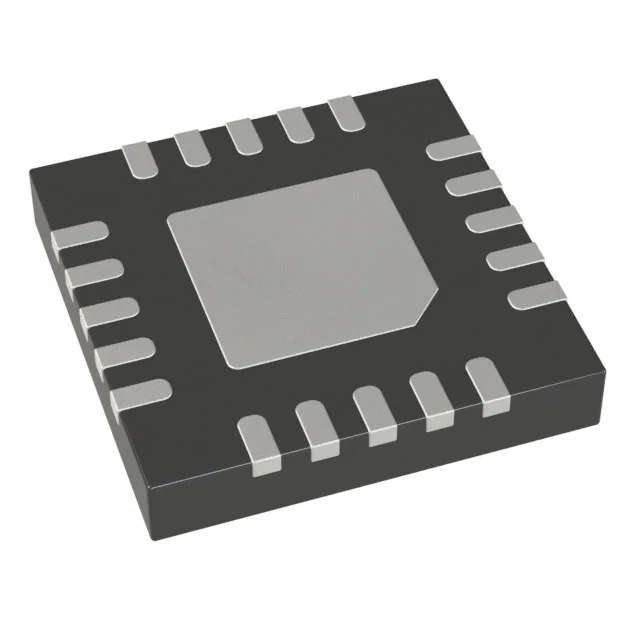

ADF4001BCPZ-RL7 – High-Precision Phase-Locked Loop (PLL) Frequency Synthesizer

The ADF4001BCPZ-RL7 is a high-precision Phase-Locked Loop (PLL) frequency synthesizer designed for generating precise frequencies with low jitter and noise. This versatile synthesizer is ideal for use in communication systems, test equipment, and other frequency-sensitive applications.

Product Brochure

Description

Technical Specifications:

  • Frequency Range: Up to 200 MHz
  • Reference Input: Single-ended or differential
  • Phase Noise Performance: Low phase noise for precise frequency synthesis
  • Supply Voltage: 3.0V to 3.6V
  • Operating Temperature Range: -40°C to +85°C
  • Package Type: 16-lead LFCSP (Lead Frame Chip Scale Package)
  • Applications: Communication systems, test and measurement equipment, wireless infrastructure, and signal processing.

Product Features:

  • High-Precision Frequency Synthesizer: Delivers accurate frequency generation with minimal phase noise.
  • Wide Frequency Range: Supports frequency generation up to 200 MHz, suitable for various applications.
  • Low Jitter Performance: Ensures stable and low-jitter output for critical timing applications.
  • Integrated Phase Detector: Features an integrated phase detector and charge pump for seamless PLL operation.
  • Flexible Reference Input: Supports both single-ended and differential reference inputs for versatility.
  • Compact LFCSP Package: Offered in a compact 16-lead LFCSP (Lead Frame Chip Scale Package) for space-constrained designs.
