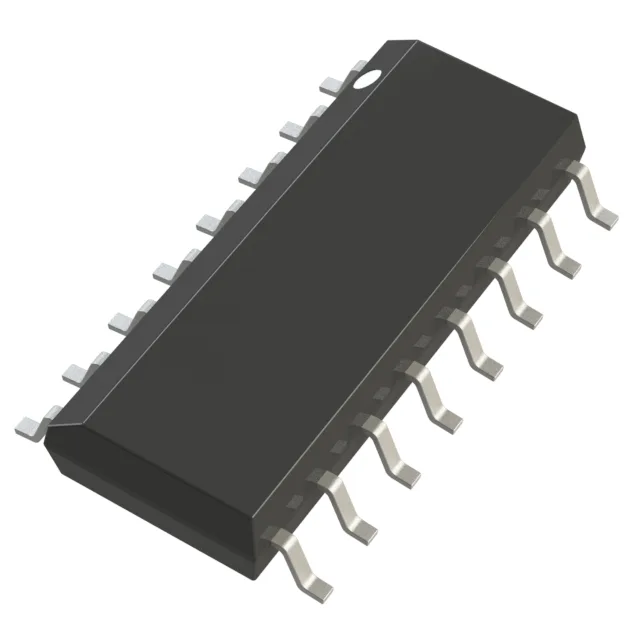

AD8801AR – 8-Channel Digital Potentiometer

The AD8801AR is an 8-channel digital potentiometer designed for precision adjustment of resistance values in analog circuits, featuring an 8-bit resolution and a compact SOIC package.

Product Brochure

Description

Technical Specifications:

  • Number of Channels: 8
  • Resolution: 8 bits (256 positions)
  • Total Resistance: 10 kΩ, 50 kΩ, or 100 kΩ (depending on variant)
  • Supply Voltage: +3V to +5V
  • Supply Current: 5 µA (typical in standby mode)
  • Interface: SPI-compatible (3-wire)
  • Temperature Range: -40°C to +85°C
  • Package Type: 20-lead SOIC

Product Features:

  • 8-Channel Configuration: Offers eight independent digitally programmable resistors.
  • 8-Bit Resolution: Allows 256 distinct resistance levels for precise control.
  • Wide Operating Range: Supports a single supply of +3V to +5V.
  • Low Power Consumption: Efficient design for portable and low-power applications.
  • Compact Packaging: Available in a 20-lead SOIC package for space-saving designs.
  • Easy Integration: Standard SPI-compatible interface for seamless communication with microcontrollers.
