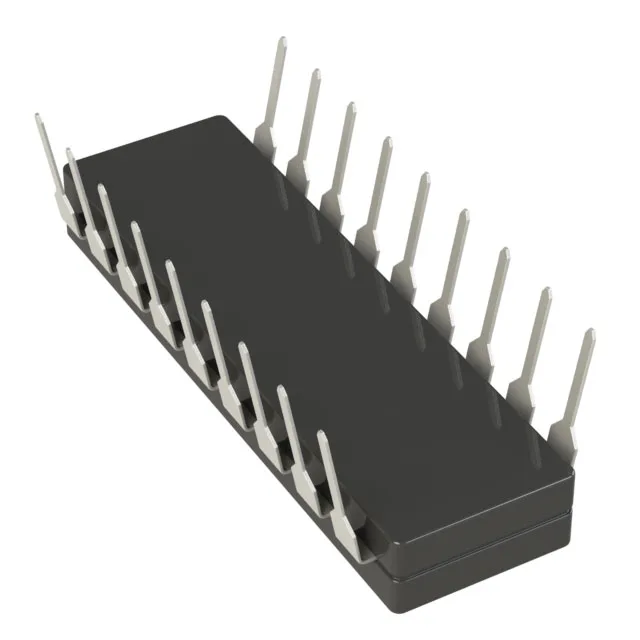

AD7248AANZ – 12-Bit Digital-to-Analog Converter (DAC)

The AD7248AANZ is a 12-bit, monolithic, dual Digital-to-Analog Converter (DAC) from Analog Devices. It offers precision digital-to-analog conversion with low power consumption and fast settling time, ideal for applications requiring high-resolution analog output.

Product Brochure

Description

Technical Specifications:

  • Resolution: 12-bit
  • Number of DAC Channels: Dual
  • Settling Time: 1 µs to 0.01% full scale (typ)
  • Output Voltage Range: 0V to +10V (typical)
  • Supply Voltage Range: +5V to +15V
  • Power Consumption: 2 mA (typical)
  • Operating Temperature: -40°C to +85°C
  • Package Type: 20-lead PDIP
  • Applications: Data acquisition systems, process control, instrumentation, and communication systems.

Product Features:

  • 12-Bit Resolution: High resolution of 12 bits ensures accurate and precise digital-to-analog conversion for demanding applications.
  • Dual DAC Configuration: Includes two DACs in a single package, enabling the generation of two independent analog outputs.
  • Fast Settling Time: Features a settling time of 1 µs (typical) to 0.01% full scale, providing rapid response in dynamic systems.
  • Low Power Consumption: Designed for low power operation with a typical supply current of 2 mA, making it suitable for battery-powered applications.
  • Wide Operating Voltage Range: Operates with a wide supply voltage range of +5V to +15V, offering flexibility in system design.
  • Compact Package: Available in a 20-lead PDIP package for easy integration into various PCB layouts.
