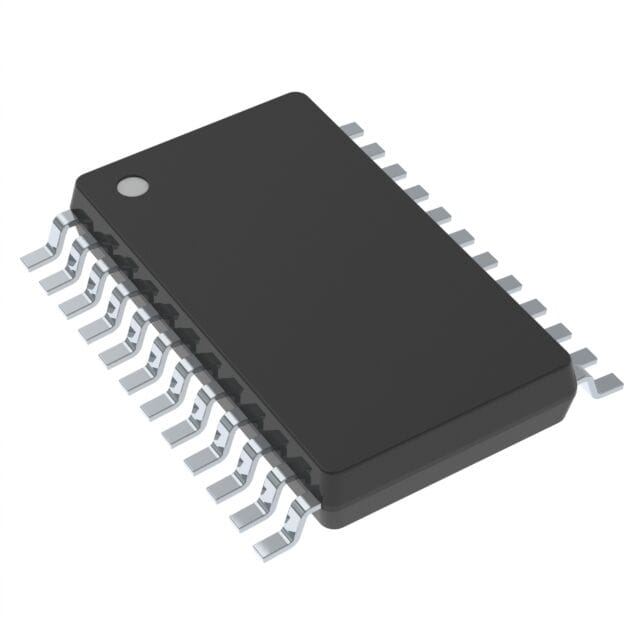

843004AGILF – Low Jitter LVPECL Clock Synthesizer

Description

Technical Specifications:

• Type: Frequency Synthesizer
• PLL: Yes with Bypass
• Input: Crystal or LVCMOS/LVTTL
• Output: LVPECL
• Number of Outputs: 4 (differential pairs)
• Ratio – Input:Output: 1:4
• Frequency – Max: 226.66 MHz
• Voltage – Supply: 2.375V to 3.465V
• Operating Temperature: -40°C to +85°C
• Package Type: 24-TSSOP

Product Features:

• Four Differential LVPECL Outputs
• Selectable Crystal Oscillator Interface or LVCMOS/LVTTL Single-Ended Clock Input
• Low RMS Phase Jitter: Typically 0.54 ps at 156.25 MHz (using a 25 MHz crystal)
• Integrated PLL with Low Phase Noise VCO
• Selectable Output Frequencies: Supports common frequencies like 156.25 MHz, 125 MHz, and 62.5 MHz
• Full 3.3V or 2.5V Supply Modes
• Output Enable Control
• Power-Down Mode
• Internal Termination for Crystal Input
• Lead-Free (RoHS 6) Package
