80HCPS1432CRMI – RapidIO Switch, 14-Port, 32-Lane

Technical Specifications:

• Type: Serial RapidIO Switch
• Ports/Lanes: 14 ports, 32 lanes
• Data Rate: Up to 6.25 Gbaud per lane (RapidIO Gen 2)
• Aggregate Bandwidth: Up to 80 Gbps (full duplex)
• Supply Voltage: 1.0V core, 1.8V/2.5V/3.3V I/O (typical for RapidIO switches)
• Power Consumption: Approx. 5-7W (typical, configuration-dependent)
• Operating Temperature: -40°C to +85°C

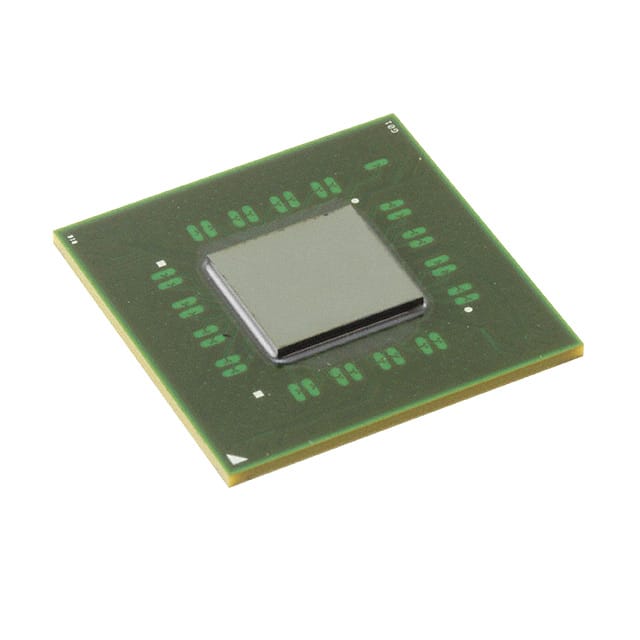

• Package Type: FCBGA-576, 576-pin, surface-mount

Product Features:

• High Port Density: Features 14 ports with 32 lanes for robust multi-device connectivity.
• RapidIO Compliance: Supports Serial RapidIO Gen 2 (up to 6.25 Gbaud) for high-speed data transfer.
• Low Latency: Optimized switching architecture ensures minimal delay in data routing.
• Flexible Configuration: Configurable port widths (1x, 2x, 4x) and speeds for versatile system designs.
• Advanced Switching: Provides multicast, priority-based routing, and error management capabilities.
• Industrial Grade: Built for reliability in harsh environments with extended temperature support.

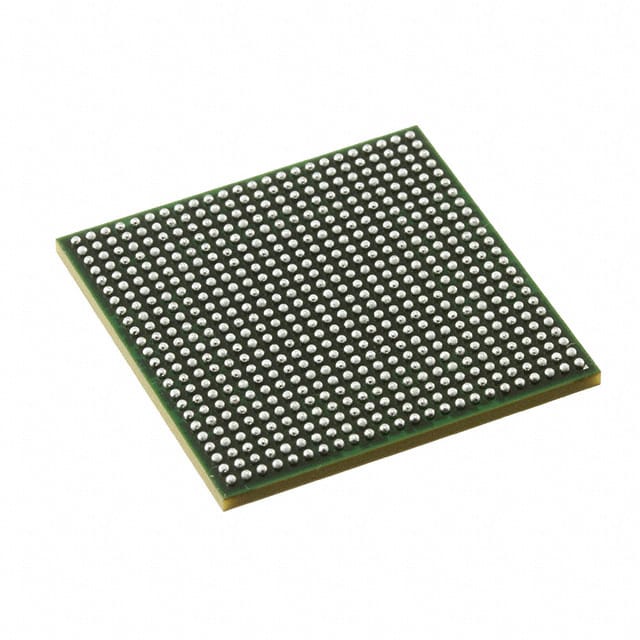

• Compact Package: Housed in a 576-pin FCBGA (Flip-Chip Ball Grid Array) for high-density integration.
• Power Efficiency: Designed to balance performance and power consumption in complex systems.
