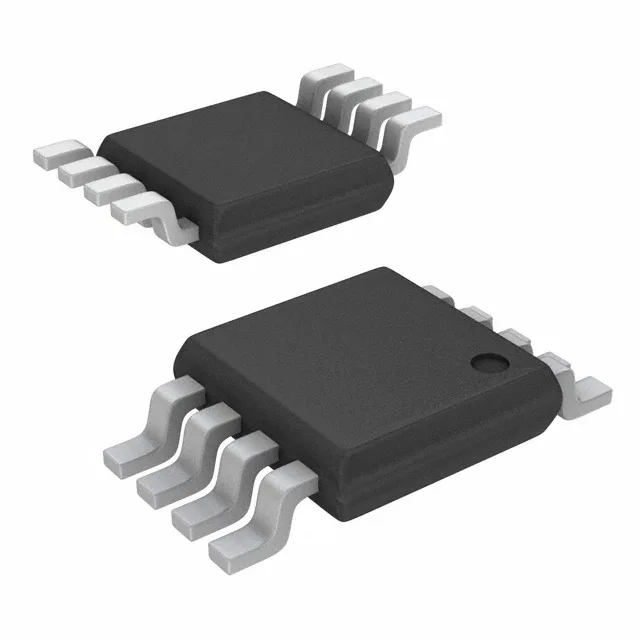

X9315WMIZ-2.7T1 – Digital Potentiometer, 32-Tap, I²C Interface, 2.7V Operation

Description

Technical specifications:

• Potentiometer type: Digitally controlled, non-volatile
• Resolution: 32 taps
• Resistance: 10 kΩ nominal
• Supply voltage: 2.7V to 5.5V
• Interface: I²C-compatible (2-wire)
• Wiper memory: Non-volatile EEPROM storage
• Package: 8-SOIC (Small Outline Integrated Circuit)
• Operating temperature: -40°C to +85°C
• Applications: Volume control, LCD contrast adjustment, system calibration, sensor trimming

Product features:

• 32-tap resolution: Allows fine control over resistance values
• I²C serial interface: Enables simple 2-wire communication
• Non-volatile memory: Retains wiper position after power-down
• Low operating voltage: Operates from 2.7V to 5.5V supply
• Low power consumption: Optimized for portable applications
• Compact packaging: 8-pin SOIC for space-saving designs
