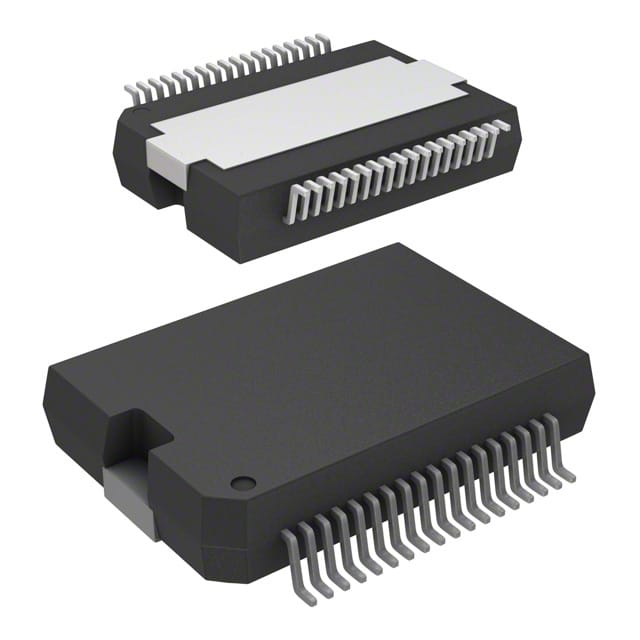

TLE6230GP – Smart Octal Low-Side Switch with SPI Interface

Description

Technical specifications:

• Switch type: Octal low-side smart switch
• Operating voltage (VS): 4.5V to 5.5V
• On-resistance (RDS(on)): 0.75 Ω typical at 25°C
• Continuous output current: 500 mA per channel
• Current limitation: 1.5A per channel
• Output clamping voltage: 55V maximum
• Package: PG-DSO-36
• Operating temperature range: -40°C to +150°C
• Applications: Automotive engine management, powertrain systems, industrial automation, and other multi-load control systems

Product features:

• Eight low-side switches: Controls up to eight independent loads with open-drain DMOS output stages.
• SPI control: Serial Peripheral Interface allows seamless integration with microcontrollers for precise control.
• Integrated diagnostics: Provides feedback on open-load detection, overtemperature, and short-circuit conditions.
• Protection mechanisms: Includes overtemperature shutdown, current limitation, and undervoltage lockout to ensure robust operation.
• PWM capability: Four channels support direct parallel control for Pulse Width Modulation applications.
