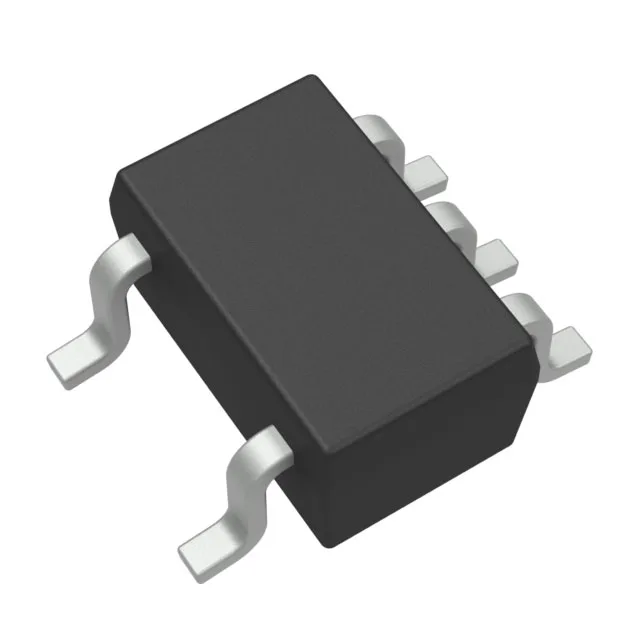

SN74LVC1G04DCKR – Single Inverter Gate

Technical Specifications:

• Type: Single Inverter Gate
• Operating Voltage Range: 1.65V to 5.5V
• Propagation Delay: 3.7ns @ 5V, 50pF
• Quiescent Current: 10µA (max)
• Output Current: ±32mA
• Operating Temperature Range: -40°C to 125°C
• Package Type: SC-70-5 (SOT-353), 5-pin, surface-mount

Product Features:

• High-Speed Operation: Offers a low propagation delay of 3.7ns at 5V for rapid signal inversion.
• Wide Operating Voltage: Supports 1.65V to 5.5V, perfect for battery-powered and standard logic circuits.
• Low Power Consumption: Features a quiescent current of just 10µA, ensuring energy efficiency.
• Robust Output Drive: Delivers up to ±32mA output current for driving downstream components.
• Compact Design: Housed in a tiny SC-70-5 (SOT-353) package for space-saving integration.
• Temperature Resilience: Operates reliably from -40°C to 125°C in demanding environments.
• RoHS Compliant: Environmentally friendly and suitable for modern manufacturing standards.
