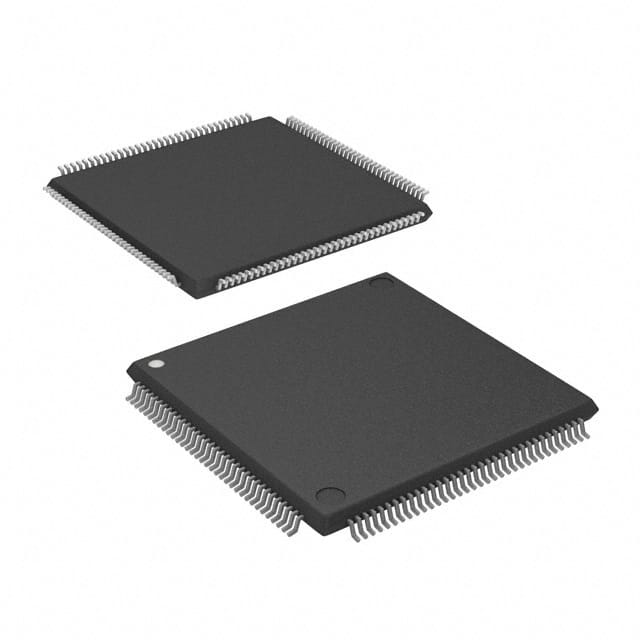

SAK-XC2785X-104F80L AA – 16-bit Microcontroller with 1MB Flash and CAN Interface

Description

Technical specifications:

• Core: 16-bit C166S V2
• Clock frequency: Up to 80MHz
• Flash memory: 1MB
• RAM: 138KB
• CAN: 3 CAN nodes
• ADC: Dual 10-bit ADCs with up to 30 channels
• Timers: CAPCOM6E, GPT12E, and PWM modules
• Communication interfaces: UART, SPI, I²C
• Package: TQFP-100
• Operating temperature: -40°C to +125°C
• Applications: Engine management, chassis control, industrial automation, safety systems

Product features:

• High-speed 16-bit CPU: Based on the C166S V2 core with up to 80MHz clock speed.
• Large Flash memory: 1MB Flash and 138KB RAM for complex applications and data processing.
• Multi-channel CAN interface: Up to 3 CAN nodes for reliable in-vehicle communication.
• Advanced timers and capture units: Support for PWM, CAPCOM, and motor control functions.
• Multiple communication protocols: UART, SPI, I²C for peripheral connectivity.
• Safety and reliability: AEC-Q100 qualified with integrated fault-tolerant features.
