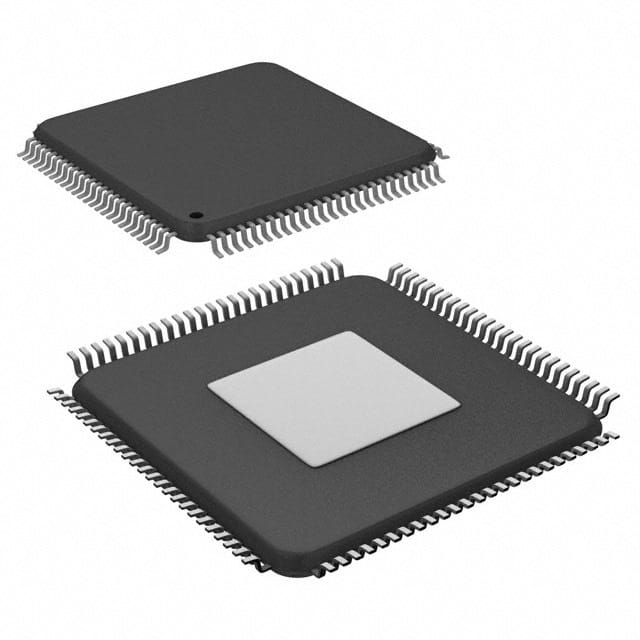

SAK-XC2268N-40F80L AA – 16-bit Microcontroller with 832KB Flash and CAN Interface

Description

Technical specifications:

• Core: 16-bit C166S V2 core
• Clock frequency: Up to 40MHz
• Flash memory: 832KB
• RAM: 82KB
• ADC: 10-bit resolution with up to 30 analog input channels
• Communication interfaces: 1x CAN, 2x UART, SPI, I²C
• Timers: 2x GPT, 1x CAPCOM6E, PWM generator
• Package: TQFP-64
• Operating temperature: -40°C to +125°C
• Applications: Automotive body electronics, transmission control, industrial automation, embedded control systems

Product features:

• High-speed 16-bit CPU: Up to 40MHz operating frequency based on the C166S V2 core.
• Extensive Flash memory: 832KB embedded Flash and 82KB RAM for code and data storage.
• Robust peripheral integration: Includes ADCs, timers, CAN, UART, and PWM.
• CAN interface: Integrated CAN node for real-time communication in automotive networks.
• Enhanced timer system: Includes GPT, CAPCOM6E, and PWM modules for motor and actuator control.
• Automotive-grade reliability: Qualified for harsh environments with built-in protection features.
