SAK-TC277TP-64F200N DC – 32-bit AURIX™ TriCore™ Performance Automotive Microcontroller

Description

Technical specifications:

• Microcontroller type: 32-bit AURIX™ TC277
• CPU frequency: Up to 200 MHz
• Flash memory: 4 MB
• RAM: 472 KB
• Voltage supply: 3.3V core, 5V-tolerant I/Os
• Interfaces: 3x CAN FD, Ethernet, LIN, UART, SPI, I²C
• Timers: GTM, CCU6, GPT12
• ADC: Multi-channel high-resolution ADCs

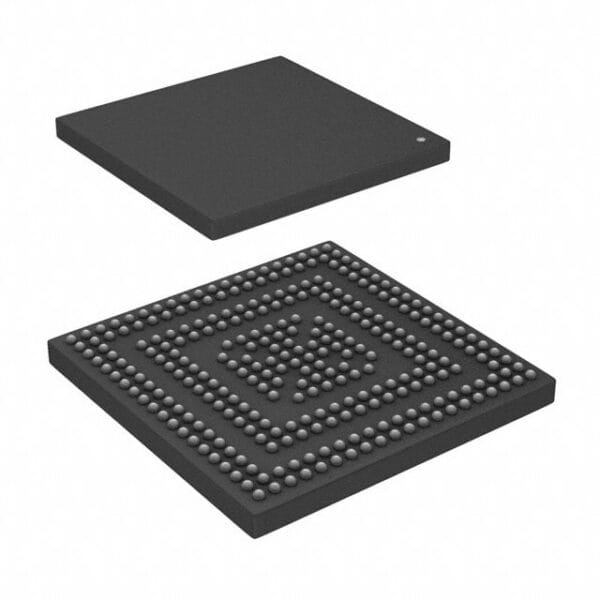

• Package type: PG-LFBGA-292
• Operating temperature range: -40°C to +150°C
• Applications: Engine and motor control, ADAS, chassis and safety systems, EV battery control

Product features:

• TriCore™ v1.6 multi-core processor: Triple cores up to 200 MHz with lockstep for safety-critical tasks.
• Ample memory capacity: 4MB Flash memory and 472KB RAM for complex automotive firmware.
• Automotive safety compliant: ISO 26262 ready up to ASIL-D.
• Security enabled: Hardware Security Module (HSM) for secure boot and communications.
• Rich communication interfaces: CAN FD, Ethernet, LIN, UART, SPI, and I²C.
• GTM and CCU6 modules: Ideal for precise motor and actuator control.
