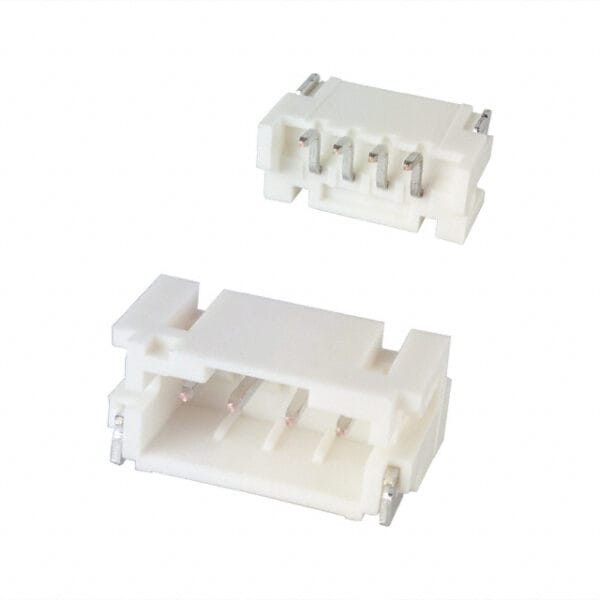

S4B-PH-SM4-TB(LF)(SN) – 4-Pin JST PH Series Side-Entry SMT Connector

Description

Technical specifications:

• Series: PH Series
• Mounting type: Surface Mount (SMT)
• Number of positions: 4 pins
• Contact plating: Tin over copper
• Connector orientation: Side-entry (right angle)
• Current rating: Up to 2A per contact
• Voltage rating: 100V AC/DC
• Operating temperature: -25°C to +85°C
• Applications: Consumer electronics, LED modules, battery packs, smart devices

Product features:

• 4-pin SMT connector: Suitable for compact wire-to-board applications
• Side-entry configuration: Right-angle design ideal for horizontal board layouts
• Low profile: Only 8.0mm height after mounting
• Secure mating: Friction lock ensures stable connection
• RoHS compliant: Lead-free and environmentally friendly
• Tin-plated contacts: For reliable conductivity and resistance to corrosion
